Two 2P+E 15A USA outlet with GFCI white - 00296

Pdf
Vimar - 00296 - Two 2P+E 15A USA outlet with GFCI white
Vimar - 00296 - Two 2P+E 15A USA outlet with GFCI white

00296
Wiring devices / Traditional wiring devices / NEVE UP / Devices

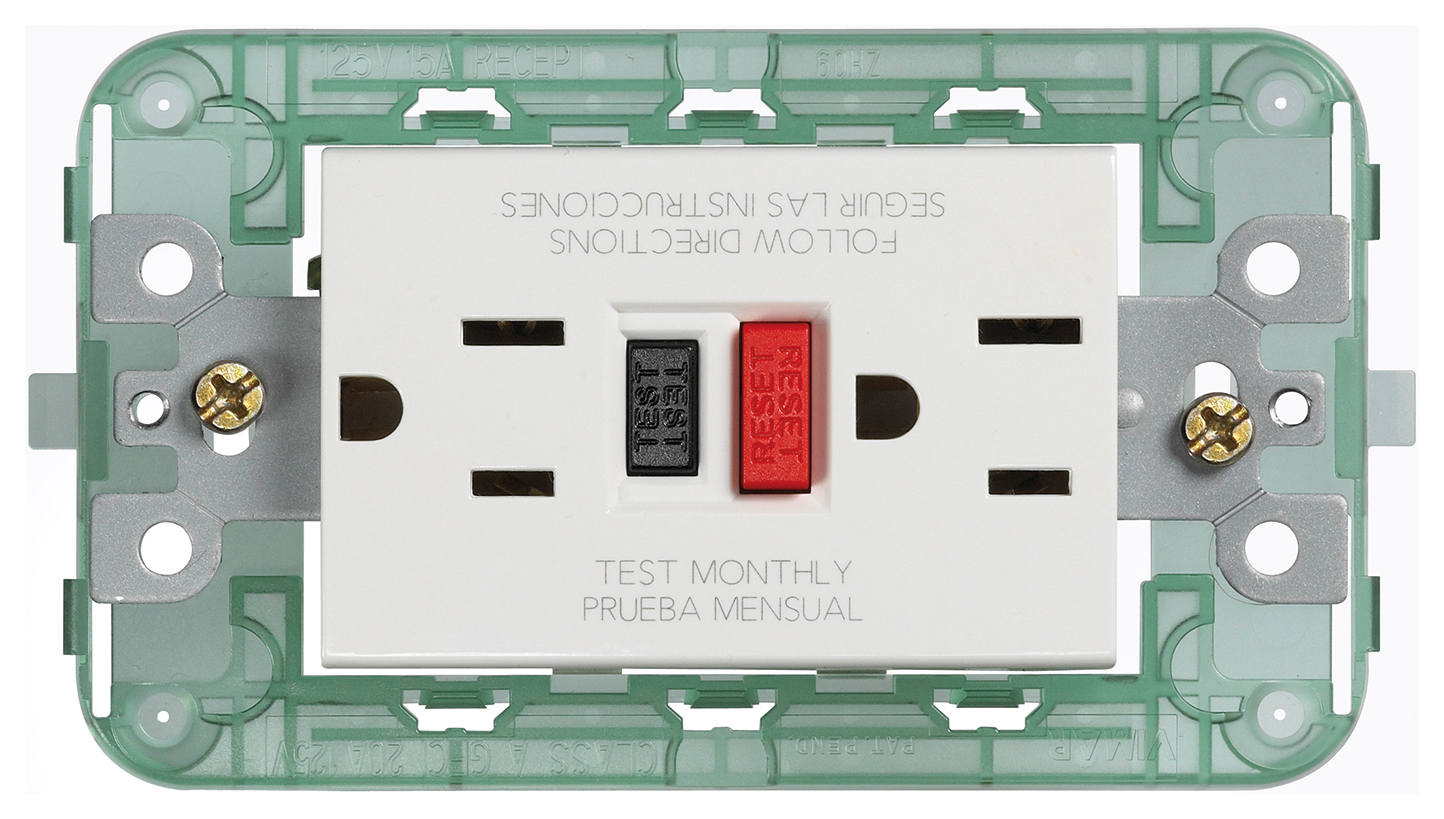

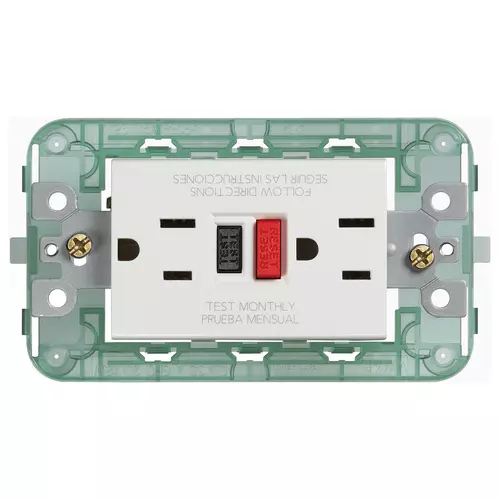

Two 2P+E 15A USA outlet with GFCI white
Two 2P+T 15 A 125 V~ 60 Hz American standard socket outlets with Ground Fault Circuit Interrupter (GFCI), device complete with mounting frame, to be completed with 3-module Plana or Neve Up cover plates, white

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 00296
PNG DXF
rear view art. 00296
PNG DXF
3D view art. 00296
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Number of modules (module system)
3
Number of socket outlets switchable
0
With hinged lid
No
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Anti-bacterial treatment
No
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
125 V
Frequency
60,00 - 60,01 HZ
Rated fault current
6 mA
Device depth
41,10 mm

00. CE Marking - EU

19. NOM - Mexico

29. QCERT - Colombia

37. Marking - Morocco

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352667297
1 NR
6.7x5.2x12 [cm]
162.97 [g]
Barcode Qty 5 NR
8007352667303
5 NR
29.5x13.5x7.7 [cm]
889.85 [g]
Barcode Qty 95 NR
8007352667310
95 NR
55.5x37.5x29 [cm]
17,787.15 [g]
