1P NC push button - 00900

Pdf
Vimar - 00900 - 1P NC push button
Vimar - 00900 - 1P NC push button

00900
Portable installation / Lighting components / Portable controls / Portable push buttons

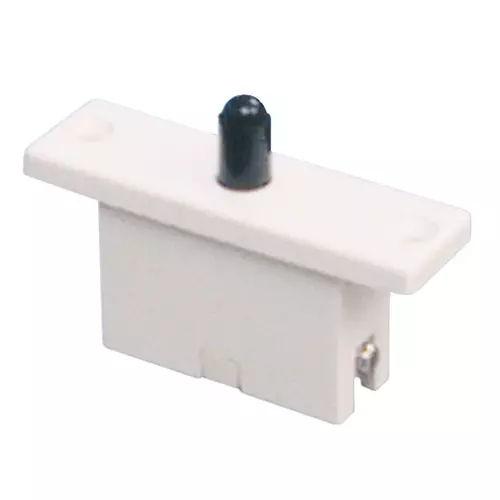

1P NC push button
1P NC 250 V~ 60 W push button for refrigerator, pillar terminals, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Device built-in switch and -push button
Model
Push button, normally closed
Method of operation
Push button
Number of control elements
1
Connection type
Screwed terminal
Number of poles
1-pole
Type of fastening
Mounting with screw
Hole diameter built-in
0 - 1 mm
Built-in depth
10 mm
Illumination
None
Imprint/indication
None
Nominal voltage
250 V
Nominal current
0,24 A
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Transparent
No
Colour control elements
White
RAL-number (similar) control element
9003
Housing colour
White
RAL-number (similar) housing
9005

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352064225
1 NR
2x3x3 [cm]
11.6 [g]
Barcode Qty 10 NR
8007352349049
10 NR
20x4x2.5 [cm]
118.6 [g]
Barcode Qty 100 NR
8007352055629
100 NR
24.4x13.9x8.4 [cm]
1,257.2 [g]
Barcode Qty 1,000 NR
8007352642294
1,000 NR
47.5x27x29 [cm]
13,020 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
