Polarized 2P 6A 24V SELV plug - 01099

Pdf
01099

Plugs and socket outlets / Signal reception plugs and sockets / Polarized plugs and socket outlets

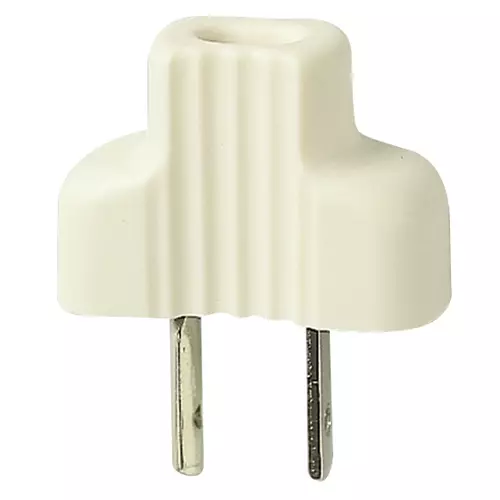

Polarized 2P 6A 24V SELV plug
2P 6 A 24 V (SELV) polarized plug for HFRT reception and Hi-Fi installations, axial cable entry, ivory. Flat blades distance between centres 12,4 mm. For socket outlets 16345, 14332, 08198

Product Status
3 - Active

Class group
Data and telecommunication
Class
Telephone/modem connector
Type of connector
Other
Model
Plug
Number of poles
2
Mechanical coding
No
Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352035997
1 NR
5x2.6x1.5 [cm]
30.87 [g]
Barcode Qty 10 NR
8007352349063
10 NR
20x10x5 [cm]
156.8 [g]
Barcode Qty 100 NR
8007352008106
100 NR
24.4x13.9x10.1 [cm]
1,647.07 [g]
Question: Which pin is the positive and which one is the negative?
Answer: The single flat pin is the ˝+˝ and the L-shaped one is the ˝-˝.
