2P+E 15A USA plug black - 01105

Pdf
01105

Plugs and socket outlets / Supernova / Axial cable entry plugs

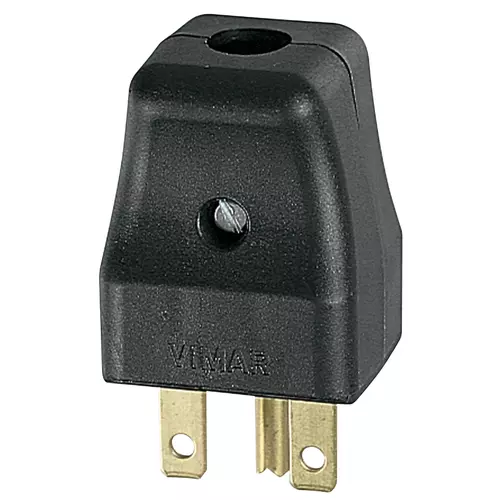

2P+E 15A USA plug black
2P+E 15 A 250 V~ plug, American standard, axial cable entry, black

Product Status
3 - Active

Class group
Domestic switching devices
Class
Plug with protective contact
Model
NEMA
Material
Plastic
Material quality
Thermoplastic
For heavy conditions (in accor
No
Degree of protection (IP)
IP20
Angle of plug
Straight
Connection system
Screwed terminal
Colour
Black
Number of poles
2
Nominal voltage
250 v
Nominal current
15 A
Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352084735
1 NR
3.6x6.5x3.2 [cm]
27.27 [g]
Barcode Qty 10 NR
8007352336582
10 NR
20x10x5 [cm]
275.13 [g]
Barcode Qty 100 NR
8007352084742
100 NR
28.4x24.4x17.9 [cm]
2,959.87 [g]
