By-me home automation Light GatewayCode 01410
- 01410
- Smart systems&products / View smart system / Shared components / DIN devices

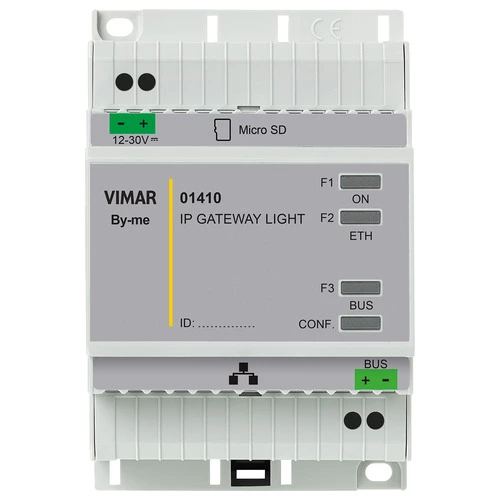

- By-me home automation Light Gateway
- IoT gateway for integration, configuration and local or remote maintenance of the By-me Plus home automation system, via IP/LAN network, Cloud and app for smartphone, tablet, PC or IP supervision touch screens, light version for max 32 By-me Plus devices, for DIN (60715 TH35) rail installation, occupies 4 17.5 mm modules
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Multilanguage instructions sheet (1180 kb)
- Manuale piattaforma View IoT Smart Syst. (8871 kb)
- Manuel plateforme View IoT Smart System (6465 kb)
- Manual plataforma View IoT Smart System (6812 kb)
- Installer manual View IoT Smart Systems (6548 kb)
- Εγχειρίδιο πλατφόρμα View IoT Smart Syst (6657 kb)
- Install. Plattform View IoT Smart System (6433 kb)
- Manuale installatore Sistema By-me Plus (31081 kb)
- Manuel installateur By-me Plus (22937 kb)
- Manual del instalador By-me Plus (24234 kb)
- Installer manual By-me Plus System (22729 kb)
- Συνδεδεμένο σύστημα smart automation (23608 kb)
- Installationsanleitung By-me Plus (23011 kb)
Product Software
Drawings
Class group
Installation bus systems
Installation bus systems
Class
System interface/media gateway for bus system
System interface/media gateway for bus system
Bus system KNX
No
No
Bus system KNX-RF (Radio Frequency)
No
No
Bus system radio frequency
No
No
Bus system LON
No
No
Bus system Powernet
No
No
Other bus systems
Other
Other
Radio frequency bidirectional
No
No
Model
Ethernet interface
Ethernet interface
Mounting method
DRA (DIN-rail adaptor)
DRA (DIN-rail adaptor)
Width in number of modular spacings
4
4
Demounting protection
No
No
With LED indication
Yes
Yes
Updateable
Yes
Yes
Protocol
TCP/IP
TCP/IP
Provider dependent
No
No
Visualization
No
No
Web-Server
Yes
Yes
Radio interface
No
No
IR interface
No
No
Degree of protection (IP)
IP40
IP40
Minimum order quantity: 1 NR
Barcode
8007352586123
1 NR
11.7x10.8x7.1 [cm]
174 [g]
8007352590588
60 NR
59x38.5x30 [cm]
11,190 [g]
| Question: | Can the gateway act as a control unit and also provide you the possibility of accessing controls via Internet/App directly? |
|---|---|
| Answer: | Gateway art. 01411 performs the control unit functions (configurator) but also those of the supervisor (once those of the Web Server 01945) as well as those of a logic unit. Within 32 home automation system devices installed and fitted with a BUS terminal, the light version of the automations gateway art. 01410 is enough |
| Question: | Can a SIM module be inserted? |
| Answer: | There is no possibility of applying a “SIM module” directly to the device to enable its remote connection; nevertheless, by inserting a 4G Router in the network connected to the gateway via an Ethernet cable, the desired result can still be achieved. |
