4-button control+actuator 2M - 01481

Pdf
Vimar - 01481 - 4-button control+actuator 2M
Foto gallery #1
Foto gallery #2
Vimar - 01481 - 4-button control+actuator 2M

01481
Smart systems&products / By-me Plus / Shared components / Devices

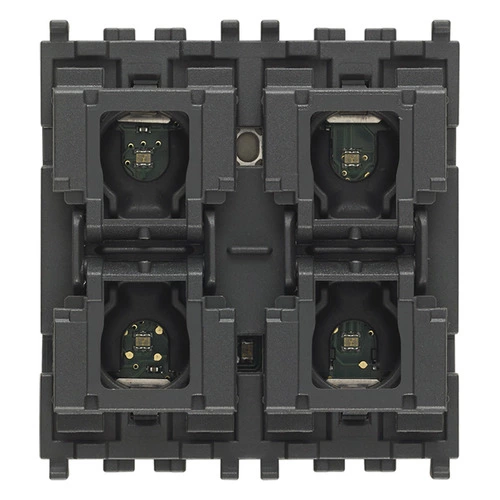

4-button control+actuator 2M
4-button home automation device and NO 16 A 120-240 V~ 50/60 Hz relay output actuator, RGB LED location in darkness with brightness control, to be completed with interchangeable 1- or 2-module Eikon, Arké or Plana half-buttons - 2 modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Multi operating device for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
With display
No
Status-LED
Yes
IR sensor
No
Manual set point setting
No
Presence button
No
With integrated DCF77 receiver
No
With anti-theft/dismantling protection
No
Central functional unit for senders/actuators
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Other
RAL-number (similar)
7024
Transparent
No
With bus connection
Yes

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Z_DM_011|UK-PSTI

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352593428
1 NR
6x5.4x5.2 [cm]
63 [g]
Barcode Qty 60 NR
8007352633063
60 NR
37.5x30x13.5 [cm]
4,086 [g]
