Dimmer KNX 2 OUT200W LED 120-240VCode 01538

01538

Smart systems&products / KNX / Shared components / DIN devices

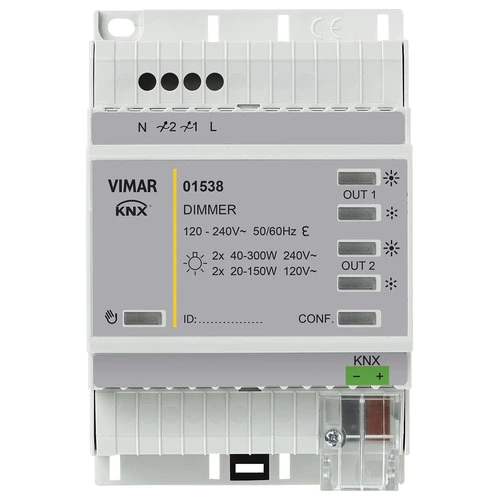

Dimmer KNX 2 OUT200W LED 120-240V

Dimmer 120-240 V~ 50/60 Hz, phase-cutting, 2 outputs for incandescent lamps 40-300 W 240 V~, 20-150 W 120 V~, electronic transformers 40-200 VA, CFL lamps 10-200 W, LED lamps 10-200 W, push buttons for local control, KNX standard, protection fuse, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm

Product Status

3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (1870 kb)
• Manuale installatore (1171 kb)
• Installer manual (844 kb)

Product Software

• DB_ComponentiAutomazione_KNX_01.16_20210920.zip
• DB_ComponentiAutomazione_KNX_01.19_20230331.zip
• DB_ComponentiAutomazione_KNX_01.20_20240917.zip
• DB_ComponentiAutomazione_KNX_01.21_20250224.zip

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Power supply for bus system

Bus system KNX-RF (Radio Frequency)
Yes

Bus system radio frequency
No

Bus system LON
No

Bus system Powernet
No

Width
71,80 mm

Height
109,80 mm

Depth
60,00 mm

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352613454

1 NR

11.7x10.8x7.1 [cm]

211.4 [g]
