6-button KNX control+shutter-laths 3M - 01587

Pdf
01587

Surface mounting equipments / Systems / KNX

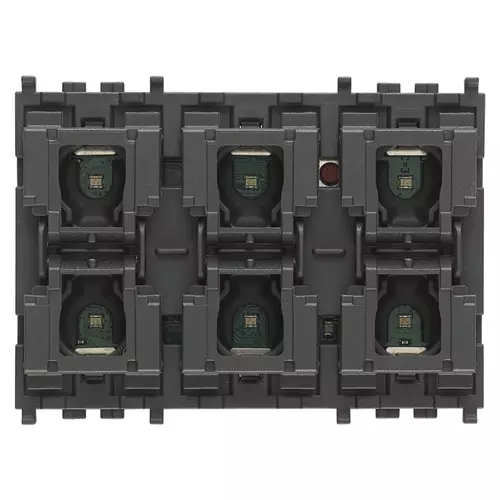

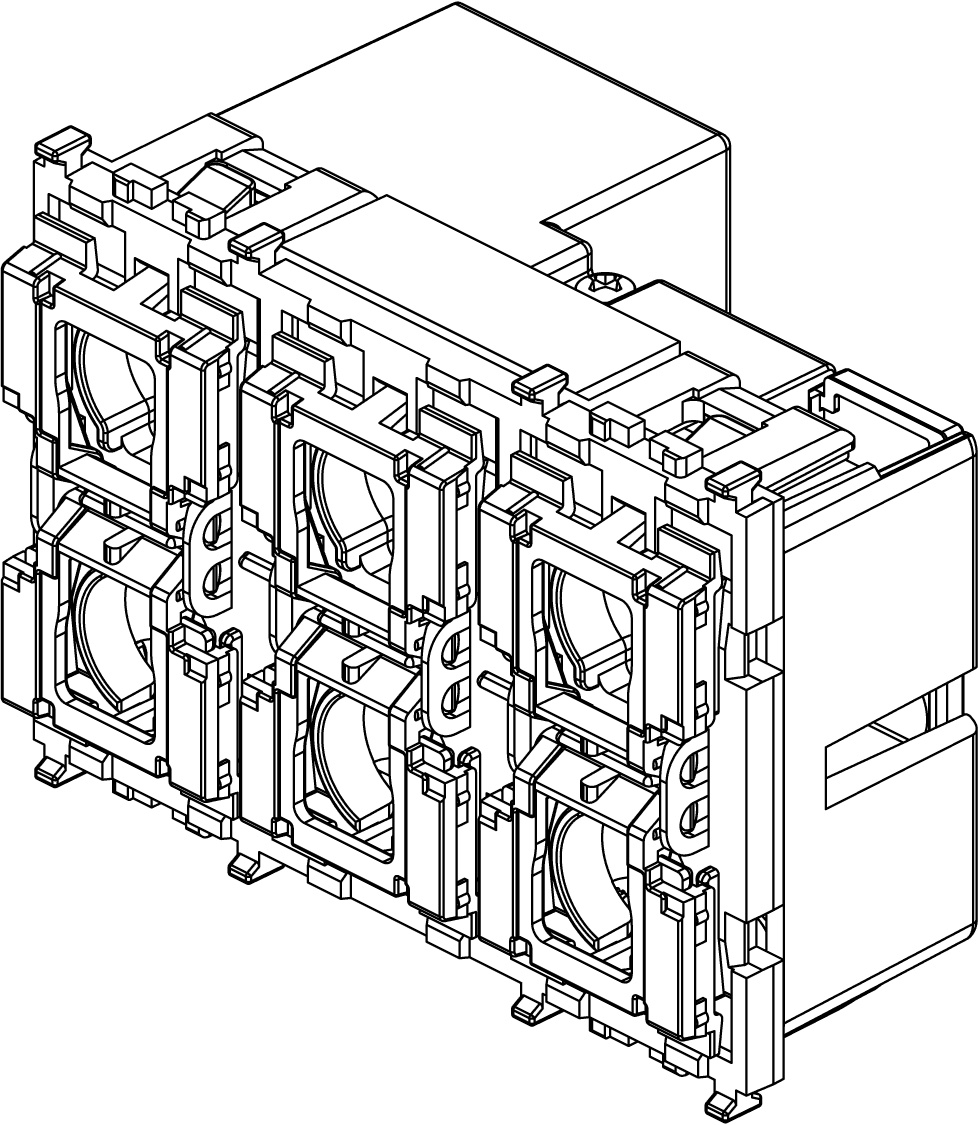

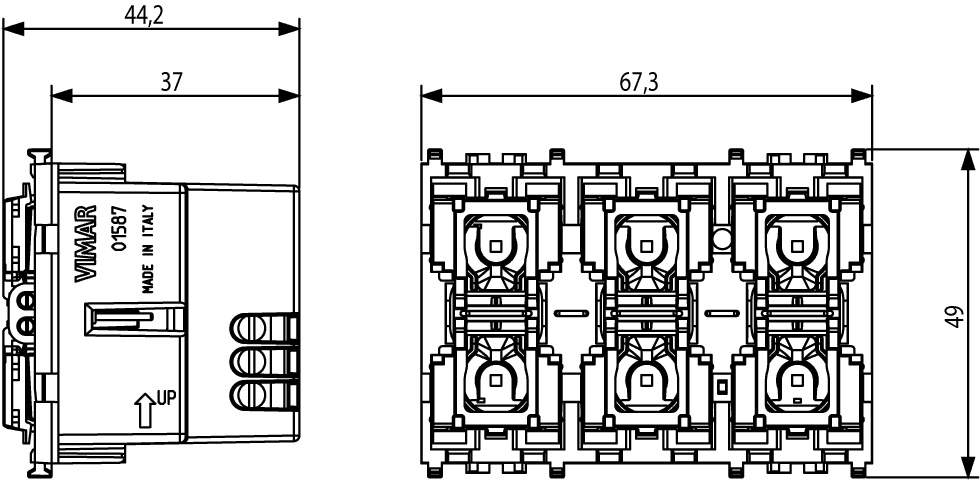

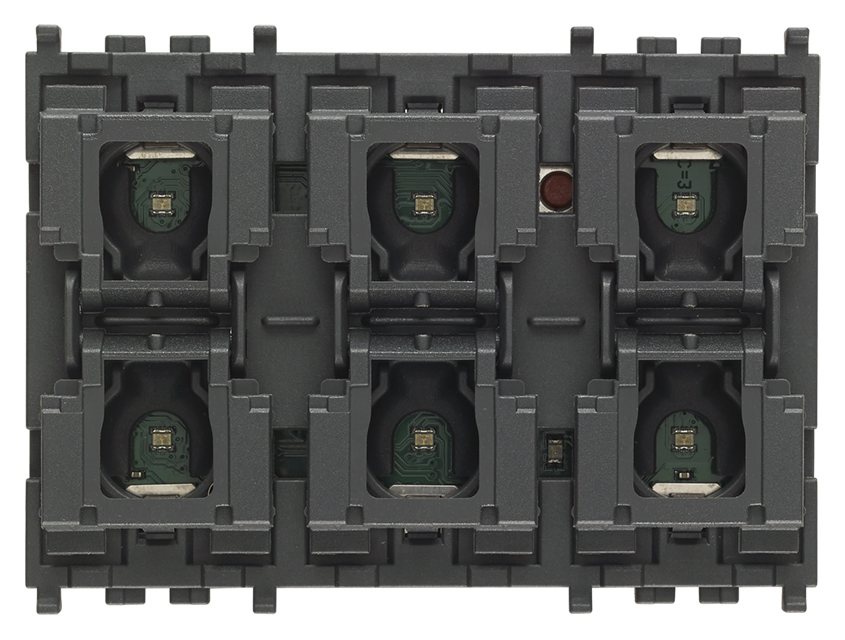

6-button KNX control+shutter-laths 3M
6-button home automation device and actuator for 1 rolling shutter and laths otientation with change-over relay output for cosφ 0,6 2 A 120-240 V~ 50/60 Hz motor, KNX standard, RGB LED location in darkness with brightness control, to be completed with interchangeable 1- or 2-module Eikon, Arké or Plana half-buttons - 2 modules

Product Status
4 - Active

Class group
Installation bus systems
Class
Multi operating device for bus system
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
Width in number of modular spacings
3
Material
Plastic
Material quality
Thermoplastic
Surface finishing
Not applicable
Colour
Other
RAL-number (akin)
7024
Transparent
No
Bus connection included
Yes
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352593626
1 NR
5.7x5.3x7.7 [cm]
77.8 [g]
Barcode Qty 5 NR
8007352593633
5 NR
21.4x11.6x6 [cm]
449 [g]
Barcode Qty 70 NR
8007352633261
70 NR
39.5x30x17 [cm]
6,286 [g]
