Polarized 2P 6A 24V 90°-plug ivory - 01616

Pdf
Vimar - 01616 - Polarized 2P 6A 24V 90°-plug ivory
Vimar - 01616 - Polarized 2P 6A 24V 90°-plug ivory

01616
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Signal plugs&socket outlets

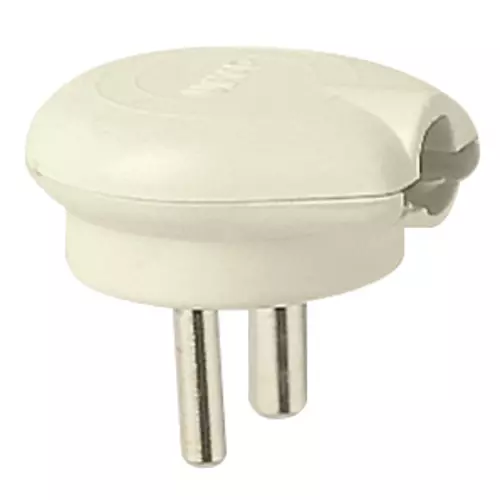

Polarized 2P 6A 24V 90°-plug ivory
2P 6 A 24 V (SELV) polarized plug, 90° cable entry, with cord-grip, ivory. 1 ø 3 mm pin and 1 ø 4 mm pin, 12,4 mm distance between centres. For socket outlets 16301, 14331, 08159, 10159

Product Status
2 - Will be discontinued

Class group
Data and telecommunication
Class
Telephone/modem connector
Type of connector
Other
Model
Plug
Number of poles
2
Mechanical coding
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352037168
1 NR
2.8x2.6x2.3 [cm]
6.73 [g]
Barcode Qty 100 NR
8007352010956
100 NR
18.8x13.8x7 [cm]
737.13 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
