Flat plug for flat cable - 01620

Pdf
01620

Plugs and socket outlets / Signal reception plugs and sockets / TV plugs, axial cable entry

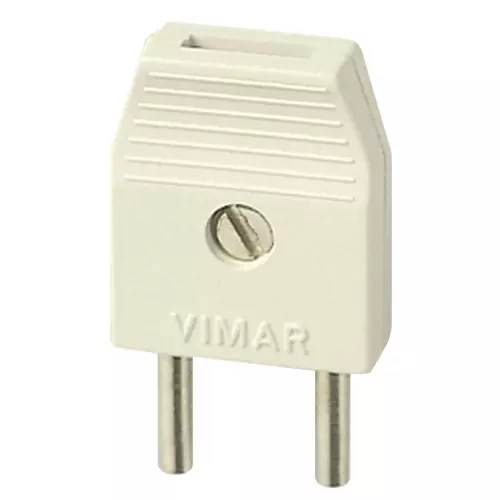

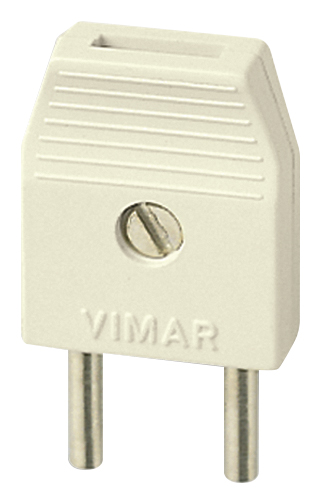

Flat plug for flat cable
Flat plug for flat cable - Z 300 ohm, ivory. ø 3 mm pins, 12,4 mm distance between centres . For socket outlets 16300, 14330, 08160, 10160, 06423

Product Status
3 - Active

Class group
Data and telecommunication
Class
Telephone/modem connector
Type of connector
Other
Model
Plug
Number of poles
2
Mechanical coding
No
Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352037182
1 NR
2.1x3.5x0.8 [cm]
5.8 [g]
Barcode Qty 100 NR
8007352008359
100 NR
13.9x11.9x7.4 [cm]
623.73 [g]
