Programming hardware interfacesCode 01993

01993

Smart systems&products / By-me Plus / Shared components / Non-modular components

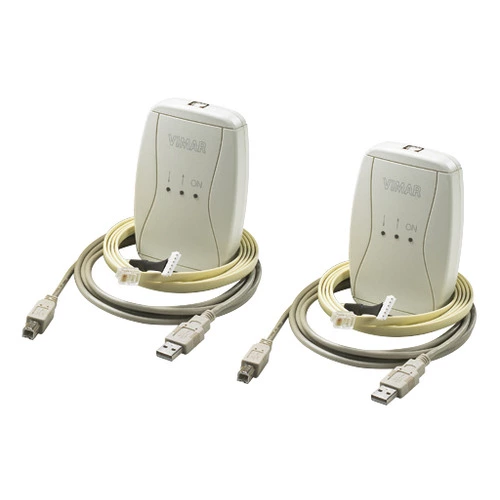

Programming hardware interfaces

Hardware interface for programming By-me serial devices and Well-contact Plus touch screens and configuring By-me systems via BUS with RJ11 jack. It is necessary the EasyTool Professional software and Well-contact Plus touch screens configuring software, downloadable from Vimar web site

Product Status

3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (930 kb)
• Manuale installatore (49757 kb)
• Manuale installatore (27268 kb)
• Manuale installatore (25313 kb)
• Manuale installatore (28168 kb)
• Manuale installatore (28149 kb)
• Anweisungsblatt (27145 kb)

Product Software

• SW_EasyToolProfessional_REL-02.03.001_20150123.zip
• SW_EasyToolProfessional_REL-02.14.000_20200407.zip
• SW_KNX_TouchConfigurator_REL-01.22.000_20221027.zip

Class group
Installation bus systems

Class
Interface for bus system

Bus system KNX
No

Bus system KNX-RF (Radio Frequency)
No

Bus system radio frequency
No

Bus system LON
No

Bus system Powernet
No

Other bus systems
Other

Radio frequency bidirectional
No

Model
Other

Mounting method
Surface mounted

Material
Plastic

Material quality
Thermoplastic

Surface protection
Other

Surface finishing
Matt

Colour
White

RAL-number (similar)
7024

Transparent
No

With bus connection
Yes

With LED indication
No

Degree of protection (IP)
IP20

00. CE Marking - EU

19. NOM - Mexico

37. Marking - Morocco

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352525498

1 NR

25x18.9x8.4 [cm]

509.7 [g]
