Lamphld - 6A/250V steatite halogen lampCode 02390

Download as PDFPDF

02390: Portable installation / Lighting components / Lampholders / Halogen lampholders

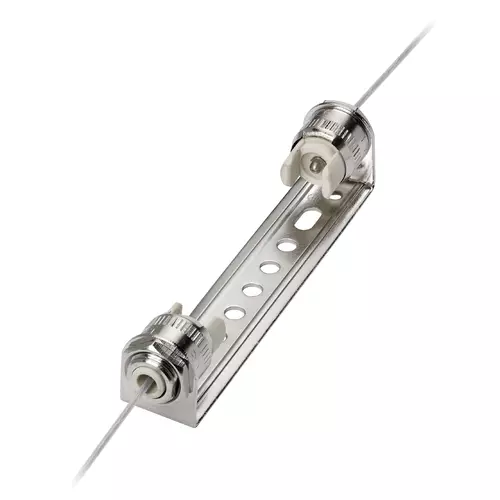

Lamphld - 6A/250V steatite halogen lamp: 6 A 250 V cylindrical steatite lampholder, nickel-plated brass casing, for halogen lamps with cap R7s rating 150-250 W, 250 mm PTFE teflon cable 0,75 mm2 - straight fixing bracket. Rated operating temperature: the lampholder and the cable 250 °C. Fixing bracket with ø 7,2 mm central hole and 4,5x7 mm slots, 68 mm fixing centres
Product Status: 3 - Active

Class group
Accessories for lighting

Class
Lamp holder

Model
Double lamp holder

Material
Other

Colour
White

Lamp holder
R7s

With starter insertion
No

Type of fastening
Screw mounting

Nipple thread
3/8 inch

00. CE Marking - EU

17. ENEC 03 (IMQ)

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

8007352037908

11.5x1.4x1.4 [cm]

65.8 [g]

8007352011250

20 NR

24.4x13.9x8.4 [cm]

1,409.53 [g]

8007352647190

200 NR

47.5x27x29 [cm]

14,600 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
