Lamphld - 10A/250V R7s halogen lamp - 02396

02396
Portable installation / Lighting components / Lampholders / Halogen lampholders

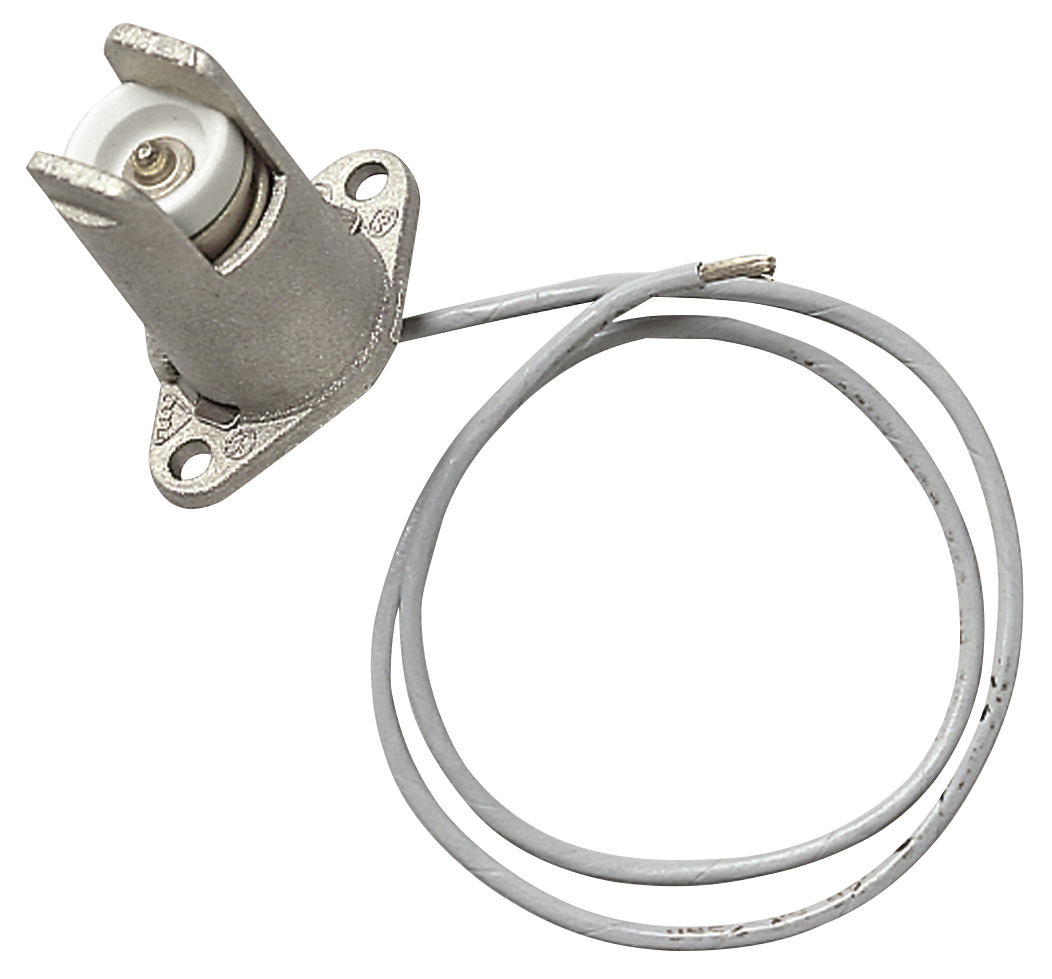

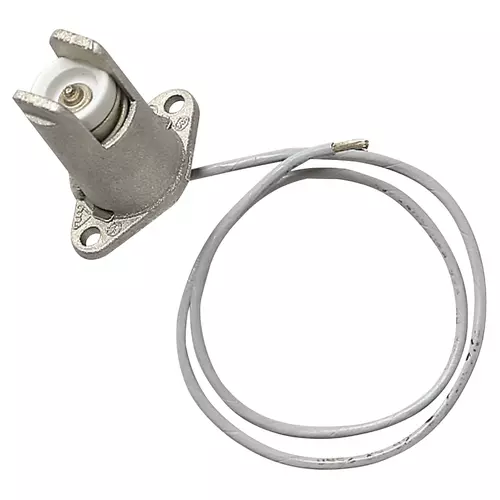

Lamphld - 10A/250V R7s halogen lamp
10 A 250 V metal lampholder, fixing base and steatite contact carrier, for halogen lamps R7s rating up to 1500 W, 350 mm PTFE teflon cable 1,5 mm2. Rated operating temperature: the lampholder 300 °C, the cable 250 °C. ø 3,3 mm fixing holes, 28 mm fixing centres

Product Status
3 - Active

• ETIM technical data
• Certifications
• Supply data

Class group
Accessories for lighting

Class
Lamp holder

Model
Double lamp holder

Material
Other

Colour
White

Lamp holder
R7s

With starter insertion
No

Type of fastening
Mounting base

Nipple thread
None

00. CE Marking - EU

17. ENEC 03 (IMQ)

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

---

Barcode

8007352079861

1 NR

3.5x2x3.2 [cm]

20.4 [g]

8007352079878

50 NR

24.4x13.9x8.4 [cm]

1,100.47 [g]

8007352643314

500 NR

47.5x27x29 [cm]

11,520 [g]
