KNX touch-thermostat 2M black - 02952

Pdf
02952

Surface mounting equipments / Systems / KNX

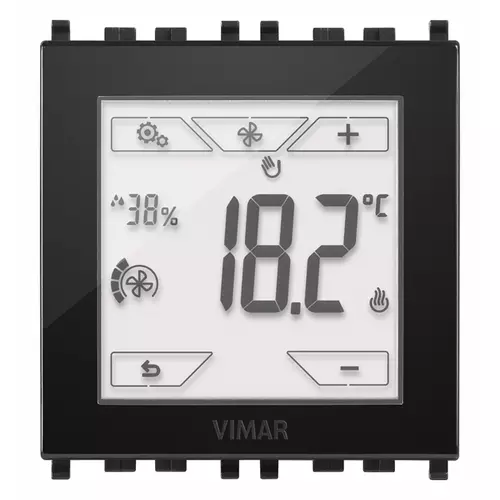

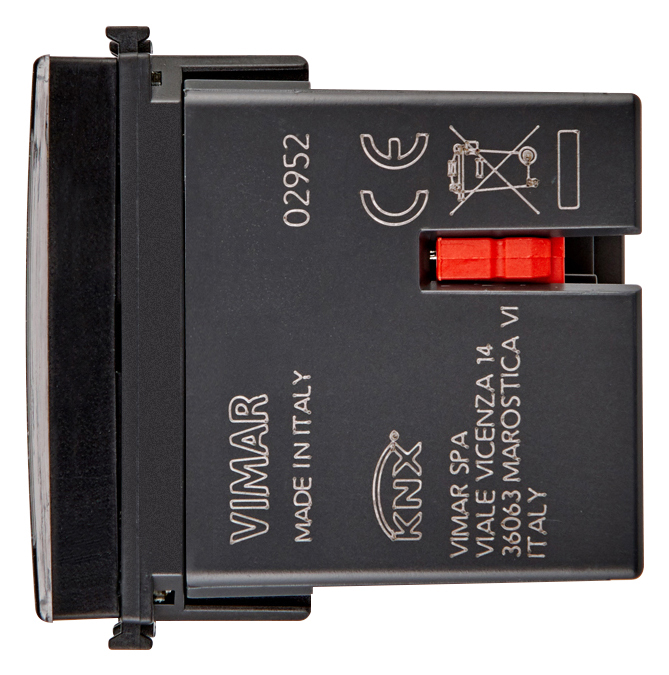

KNX touch-thermostat 2M black
Electronic touchscreen thermostat for ambient temperature control (heating and air-conditioning) of 2 independent zones, KNX standard home automation system, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PI mode, 1 NO relay output 4 A 24 V~, 1 input for wired temperature sensor or electronic temperature sensor, 1 programmable digital input, RGB LED backlighting, can be interfaced with actuator with KNX proportional analogue outputs to make a class V modulating room thermostat (contribution 3%), to be completed with Eikon, Arké or Plana cover plates, black - 2 modules

Product Status
4 - Active

Class group
Installation bus systems
Class
Room temperature controller for bus system
Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Assembly arrangement
Basic element
Mounting method
Flush mounted (plaster)
With local operation
Yes
With anti-theft/dismantling protection
No
With LED indication
No
With display
Yes
Material
Plastic
Material quality
Other
Surface finishing
Glossy
Colour
Black
RAL-number (similar)
9004
Transparent
No
Manual set point setting
Yes
Presence button
No
Parallel-service possible
No
Degree of protection (IP)
IP40
With bus connection
Yes

00. CE Marking - EU

10. EAC Eurasian Customs Union

27. KNX

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352512429
1 NR
11.2x9.6x9.8 [cm]
142.4 [g]
Barcode Qty 5 NR
8007352512436
5 NR
30.5x21.2x11.4 [cm]
877.8 [g]
Barcode Qty 18 NR
8007352671195
18 NR
37.5x30x21 [cm]
1,736 [g]
