Quid - 4-sequence step relay module 10A - 03993

Pdf
Vimar - 03993 - Quid - 4-sequence step relay module 10A
Vimar - 03993 - Quid - 4-sequence step relay module 10A

03993
Wiring devices / Traditional wiring devices / Shared components / Non-modular components

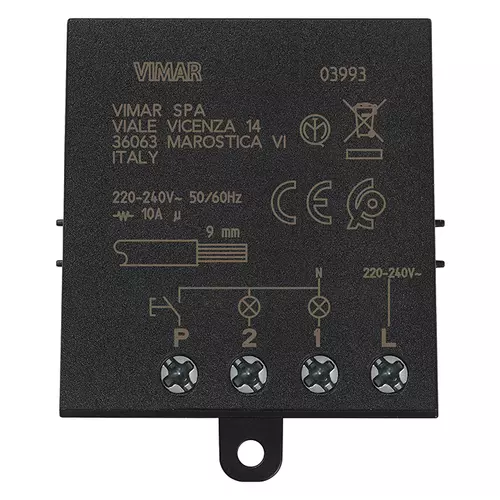

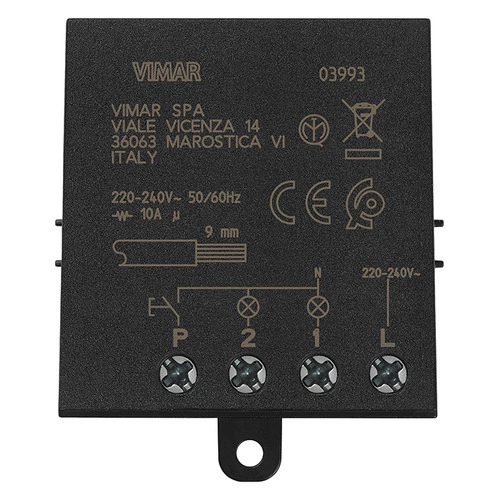

Quid - 4-sequence step relay module 10A
Quid magnetic relay module with sequential ON/OFF pulses, 1 input for NO push button, 2 NO 10A 220-240 V~ 50/60 Hz sequential relay outputs, installation in junction boxes or connector block boxes

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

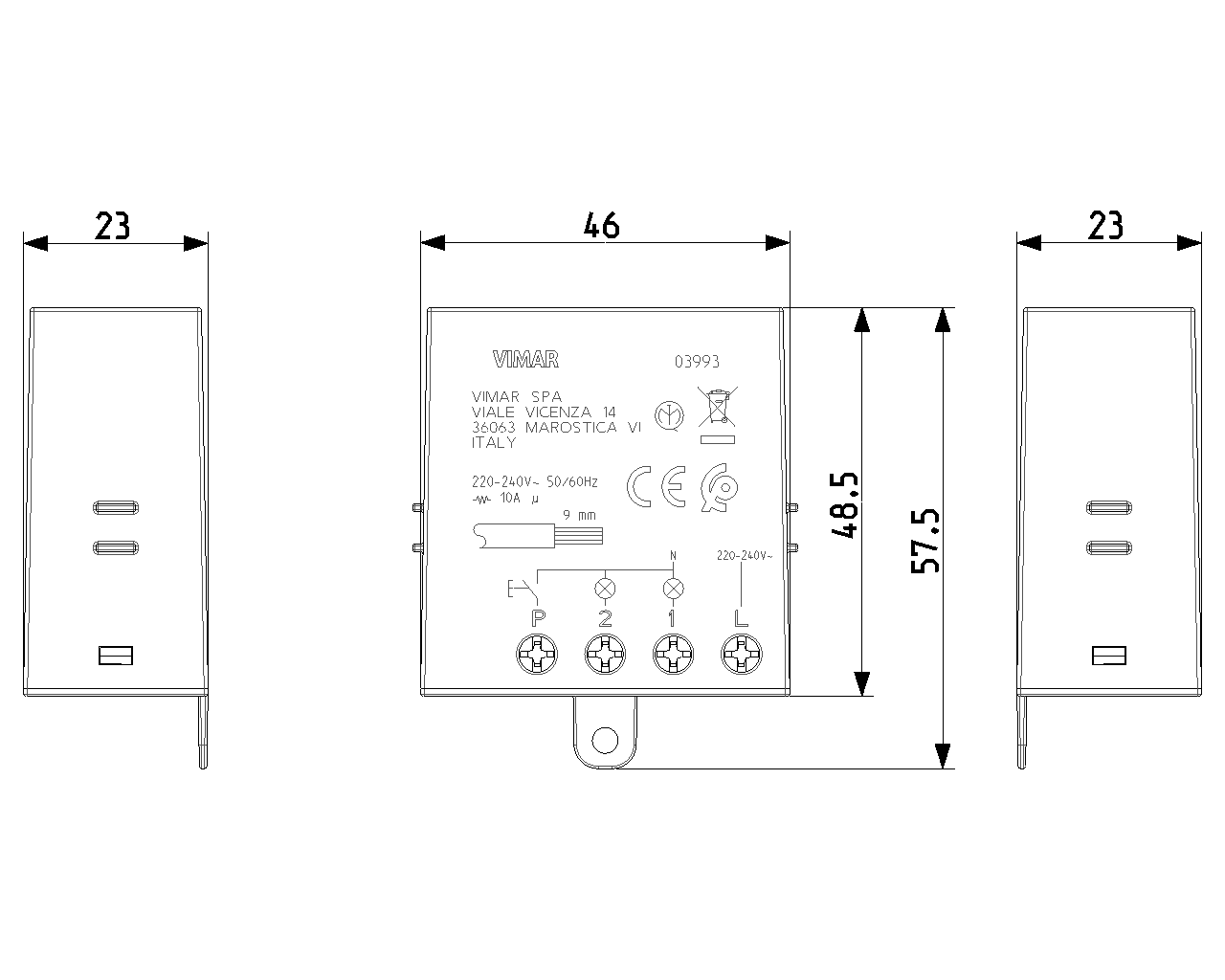

view encumbered art. 03993
PNG DXF
rear view art. 03993
PNG DXF

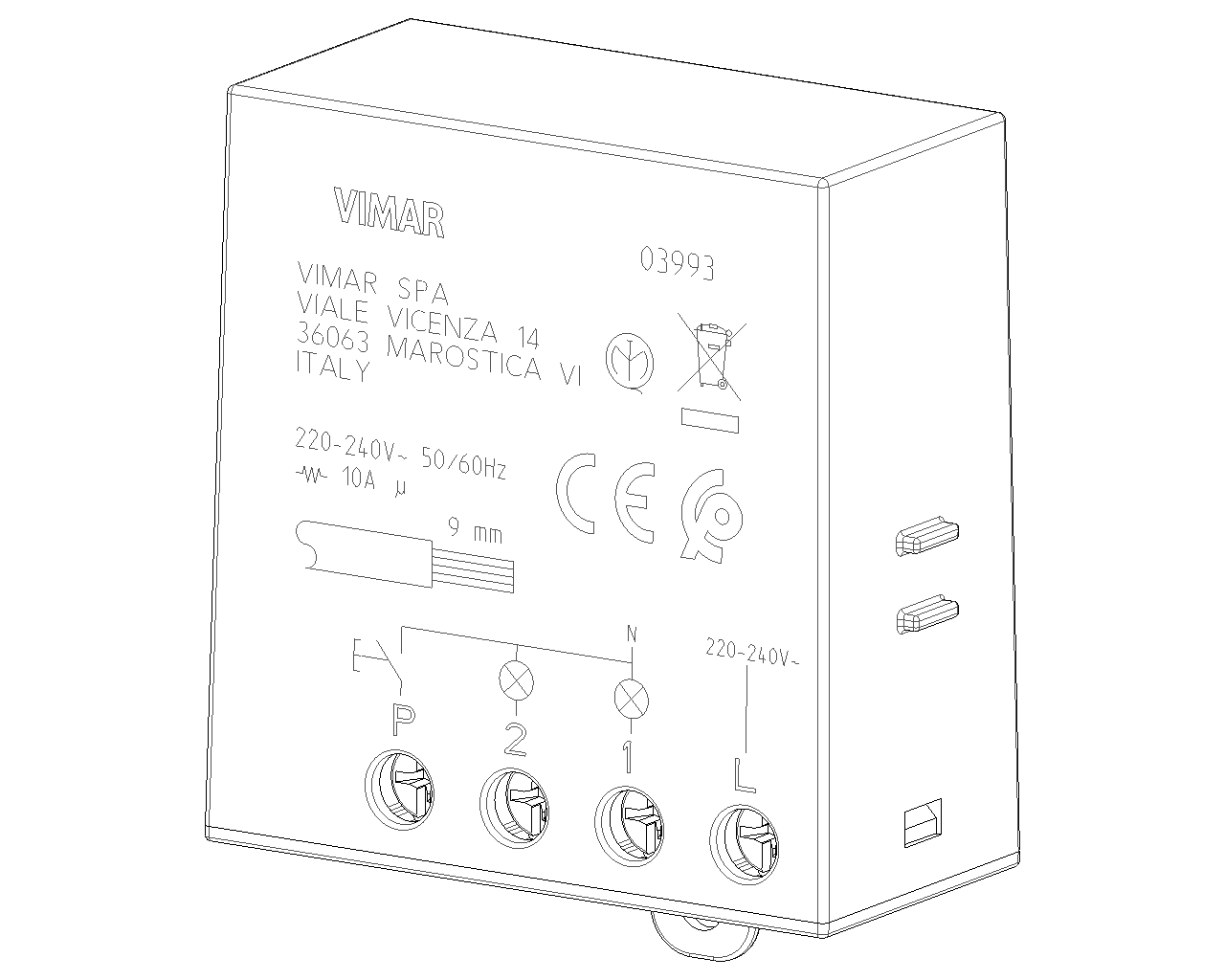

3D view art. 03993
PNG DXF
Class group
Relays
Class
Switching relay
Complete with socket
No
With detachable clamps
No
With forced-guided contacts
No
Nominal current
10 A
Height
57,50 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352623255
1 NR
6x5.4x5.3 [cm]
68 [g]
Barcode Qty 10 NR
8007352623262
10 NR
28.1x13.1x6 [cm]
760 [g]
Barcode Qty 120 NR
8007352623279
120 NR
38.5x29x30 [cm]
9,558 [g]
