RJ11 phone jack 6/4 - 08215

Pdf
Vimar - 08215 - RJ11 phone jack 6/4
Vimar - 08215 - RJ11 phone jack 6/4

08215
Wiring devices / Traditional wiring devices / 8000 / Devices

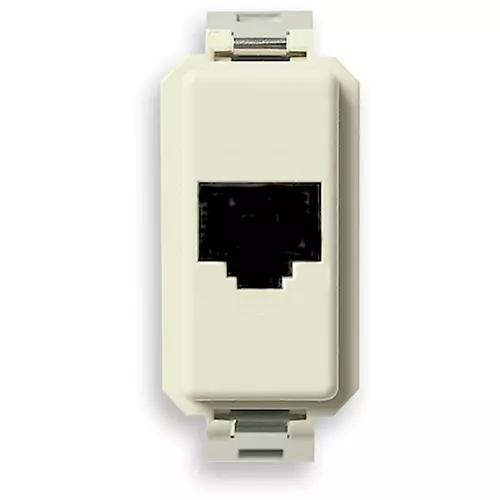

RJ11 phone jack 6/4
RJ11 phone jack, 6-position 4-conductor, screw terminal

Product Status
3 - Active

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
UAE/IAE (ISDN)
Support ring
No
With dust cover
No
With hinged lid
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Type of fastening
Clamp mounting
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,00 mm
Device height
50,10 mm
Device depth
42,50 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352002517
1 NR
5.1x2.8x5.3 [cm]
20.5 [g]
Barcode Qty 20 NR
8007352063945
20 NR
27x11.6x6 [cm]
478.2 [g]
