1P NO 10A cord-operated push button - 08270

Pdf
08270

8000 / Devices / Devices - other functions

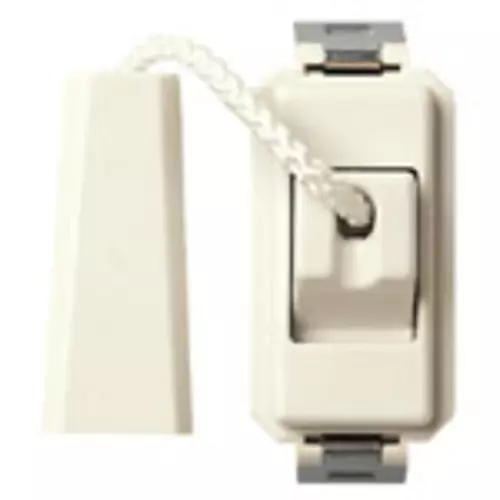

1P NO 10A cord-operated push button
1P NO 10 A 250 V~ cord-operated push button, 1,5 m cord

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
0
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Width of device
22,00 mm
Height of device
50,10 mm
Depth of device
35,00 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352014435
1 NR
5.1x4.3x5.3 [cm]
34.4 [g]
Barcode Qty 20 NR
8007352007031
20 NR
26.9x11.6x9 [cm]
771.47 [g]
