Two 1P NO 10A push buttons - 08275

Pdf
Vimar - 08275 - Two 1P NO 10A push buttons
Vimar - 08275 - Two 1P NO 10A push buttons

08275
Wiring devices / Traditional wiring devices / 8000 / Devices

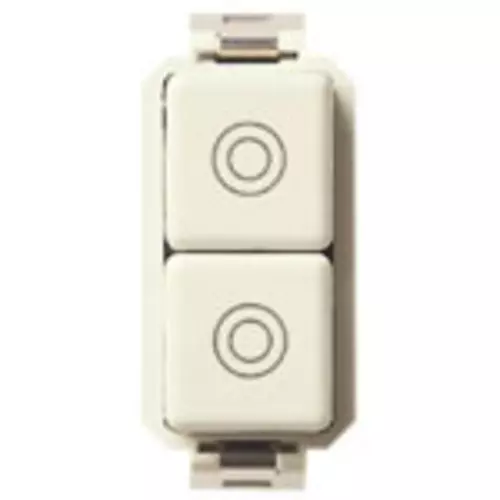

Two 1P NO 10A push buttons
Two independent 1P NO + 1P NO 10 A 250 V~ push buttons. Allow to close the two circuits simultaneously, they are not indicated to reverse the direction of motor-driven appliances (i.e. roller blinds, gates, etc.)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
2
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device height
45,00 mm
Device depth
37,50 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352014480
1 NR
4.1x2.8x5.3 [cm]
29.2 [g]
Barcode Qty 50 NR
8007352009097
50 NR
21.4x11.6x14.2 [cm]
1,539.33 [g]
Barcode Qty 500 NR
8007352644731
500 NR
57.5x22.5x30 [cm]
15,920 [g]
