Frame 1M for DIN rail 53mm depth - 09961

09961
System infrastructure / Enclosures and control units / Switchboards / Shared accessories

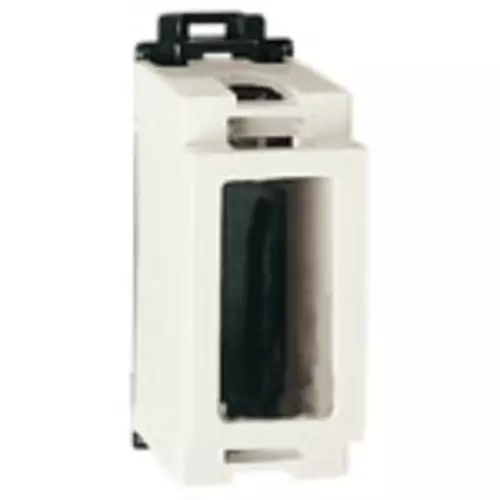

Frame 1M for DIN rail 53mm depth
Mounting frame for DIN (60715 TH35) rail installation, 17,5 mm 1,5 modules sized, 53 mm depth, for 1 8000 standard module, RAL 7035 grey. Not suitable for 08065…

Product Status
3 - Active

• ETIM technical data
• Certifications
• Supply data

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Snap mounting

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
1,50

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
No

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
Yes

Material
Plastic

Material quality
Thermoplastic

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 50 NR

---

Barcode

8007352043787

1 NR

7x2.6x5.8 [cm]

21.6 [g]

8007352005921

50 NR

28.4x18.4x13.7 [cm]

1,234.15 [g]
