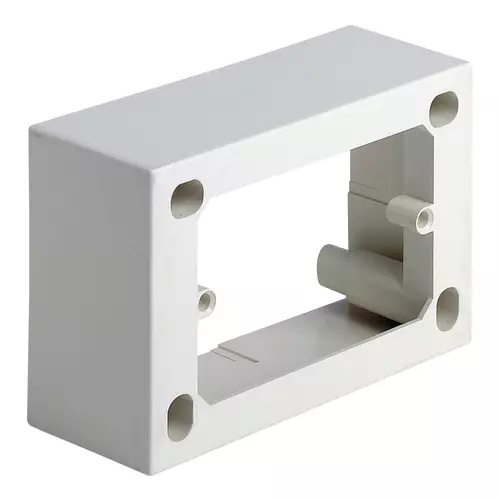

Surface-box 3M 48mm depth whiteCode 09974

Download as PDFPDF

09974: System infrastructure / Enclosures and control units / Connector block boxes / Surface mounting
Surface-box 3M 48mm depth white: 3-module surface mounting box, 48 mm depth, for 8000 with relevants mounting frame, cover plates or self-bearing cover plates, ivory. To be installed on insulating non-perforated or metallic with earth connection surfaces.
Product Status: 3 - Active

Class group
Electrical installation, isolation and connection material

Class
Box/housing for surface mounting on the wall/ceiling

Model
Mounting box

Equipped with
None

Max. conductor cross section
0,00 mm2

Shape
Rectangular

Mounting method
Wall-/ceiling mounting

Mounting in the soil
No

Mounting under water
No

For tube diameter
20/25 mm

Number of inlets
4

Diameter
0,00 mm

Connectable
No

Material
Plastic

Surface protection
Untreated

Colour
White

Transparent cover
No

Castable
No

Cover attachment
Screwed

Casting compound included
No

Sealable
No

Rated insulation voltage Ui
450 V

Circuit integrity
None

With screening
No

Working temperature
0 - 60 °C

Explosion-tested version
No

For Ex-zone gas
None

For Ex-zone dust
None

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

8007352043862

12x8x4 [cm]

61.73 [g]

8007352003521

20 NR

28.4x24.4x17.9 [cm]

1,458.47 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
