TV ø9,5IEC through-line outlet - 10179

10179
Wiring devices / Traditional wiring devices / LINEA Classica / Devices

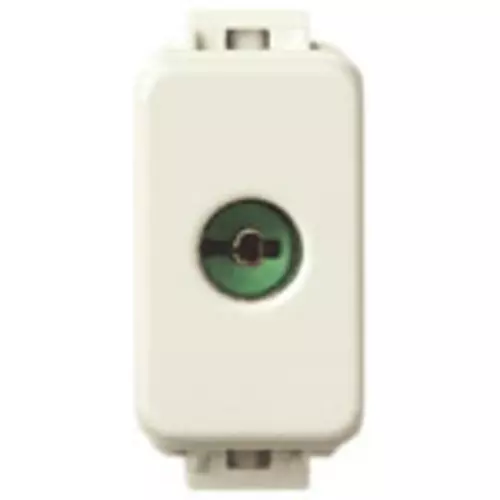

TV ø9,5IEC through-line outlet
Coaxial TV 40-862 MHz socket outlet, through line, with IEC 60169-2 female connector, throughpass attenuation 3 dB, connection attenuation 20 dB

Product Status
3 - Active

• ETIM technical data
• Certifications
• Supply data

Class group
Antenna and satellite technique

Class
Antenna socket box

Cover
None

Tap loss at 860 MHz
20,00 dB

Through loss at 860 MHz
3,00 dB

Suitable for remote power supply
No

Type of fastening
Snap mounting (engagement)

Colour
White

RAL-number (similar)
9001

Material
Plastic

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 50 NR

---

Barcode

8007352020306

1 NR

4.1x2.8x5.3 [cm]

26.27 [g]

8007352019072

50 NR

21.4x11.6x14.2 [cm]

1,407.33 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
