1P NO 10A push button general symbol - 10235

Pdf
Vimar - 10235 - 1P NO 10A push button general symbol
Vimar - 10235 - 1P NO 10A push button general symbol

10235
Wiring devices / Traditional wiring devices / LINEA Classica / Devices

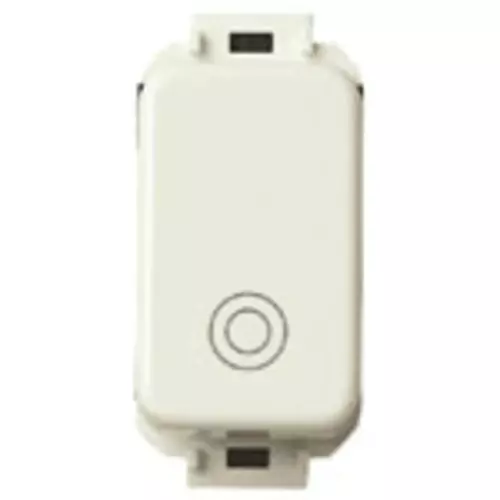

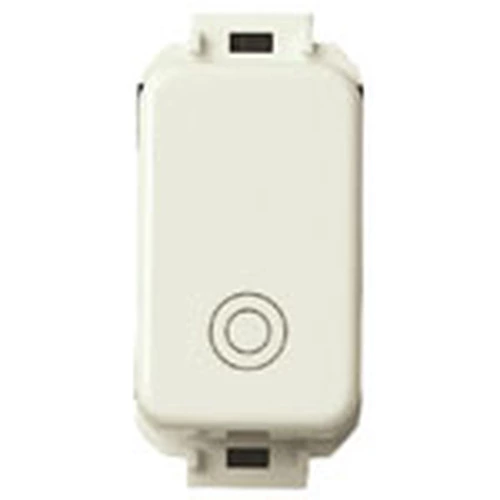

1P NO 10A push button general symbol
1P NO 10 A 250 V~ push button, general symbol

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Method of operation
Push button
Nominal voltage
250 V
Rated current
10,00 A
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Device width
22,00 mm
Device height
36,00 mm
Device depth
35,50 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

19. NOM - Mexico

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352020399
1 NR
4.1x2.8x5.3 [cm]
20.13 [g]
Barcode Qty 50 NR
8007352010109
50 NR
21.4x11.6x14.2 [cm]
1,102.27 [g]
