2P+E 16A P30 outlet box 3M - 10764

Pdf
Vimar - 10764 - 2P+E 16A P30 outlet box 3M
Vimar - 10764 - 2P+E 16A P30 outlet box 3M
10764

Linea / Devices / Italian standard socket outlets

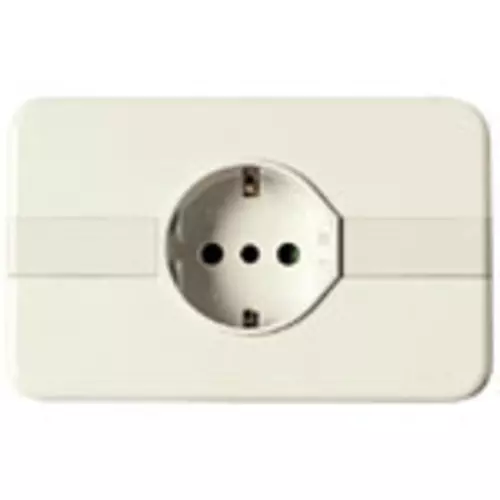

2P+E 16A P30 outlet box 3M
2P+E 16 A 250 V~ SICURY socket outlet, Italian standard P30 (lateral and central earth contacts) - provided with resin self-bearing cover plate, ivory, for 3-module flush mounting boxes and screw covering strips 10797.01

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Number of modules (module system)
3
Label space/information surface
Yes
Colour
White
RAL-number (akin)
9001
Transparent
No
Eject-mechanism
No
Insulated mounting
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 v
For heavy conditions (in accordance with VDE)
No
Height of device
76,00 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352044166
1 NR
12x7.6x3 [cm]
68.47 [g]
Barcode Qty 10 NR
8007352019577
10 NR
25x18.9x8.4 [cm]
799.47 [g]
