1P NO 10A push button white - 14008

Pdf
14008

Plana / Devices / Basic devices

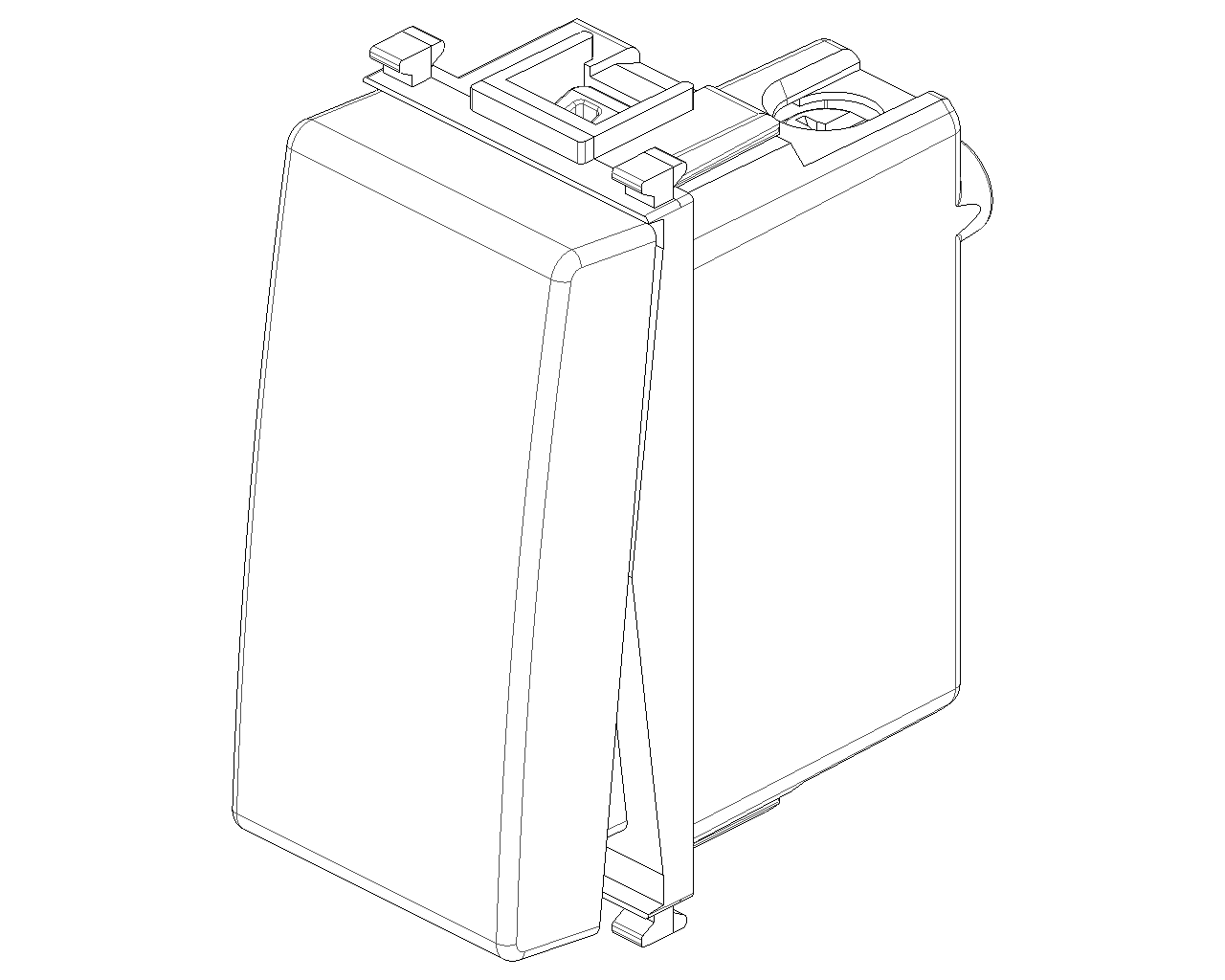

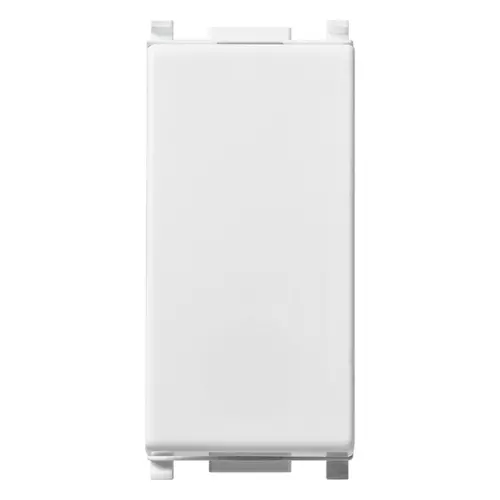

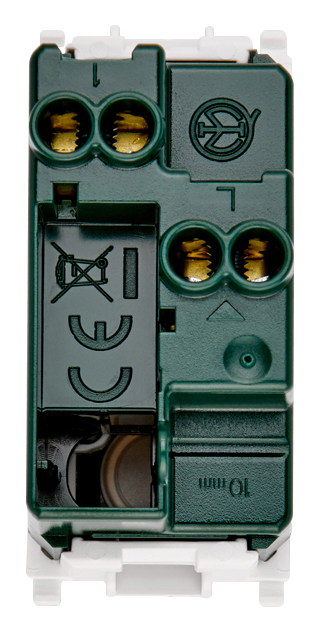

1P NO 10A push button white
1P NO 10 A 250 V~ push button, lightable, replaceable button, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Contacts
1 make contact (NO)
Number of poles
1
Feedback-signal contact
No
Number of rockers
1
Number of modules (module syst
1
With lighting
Yes
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Transparent
No
Label space/information surfac
Yes
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
10,00 A

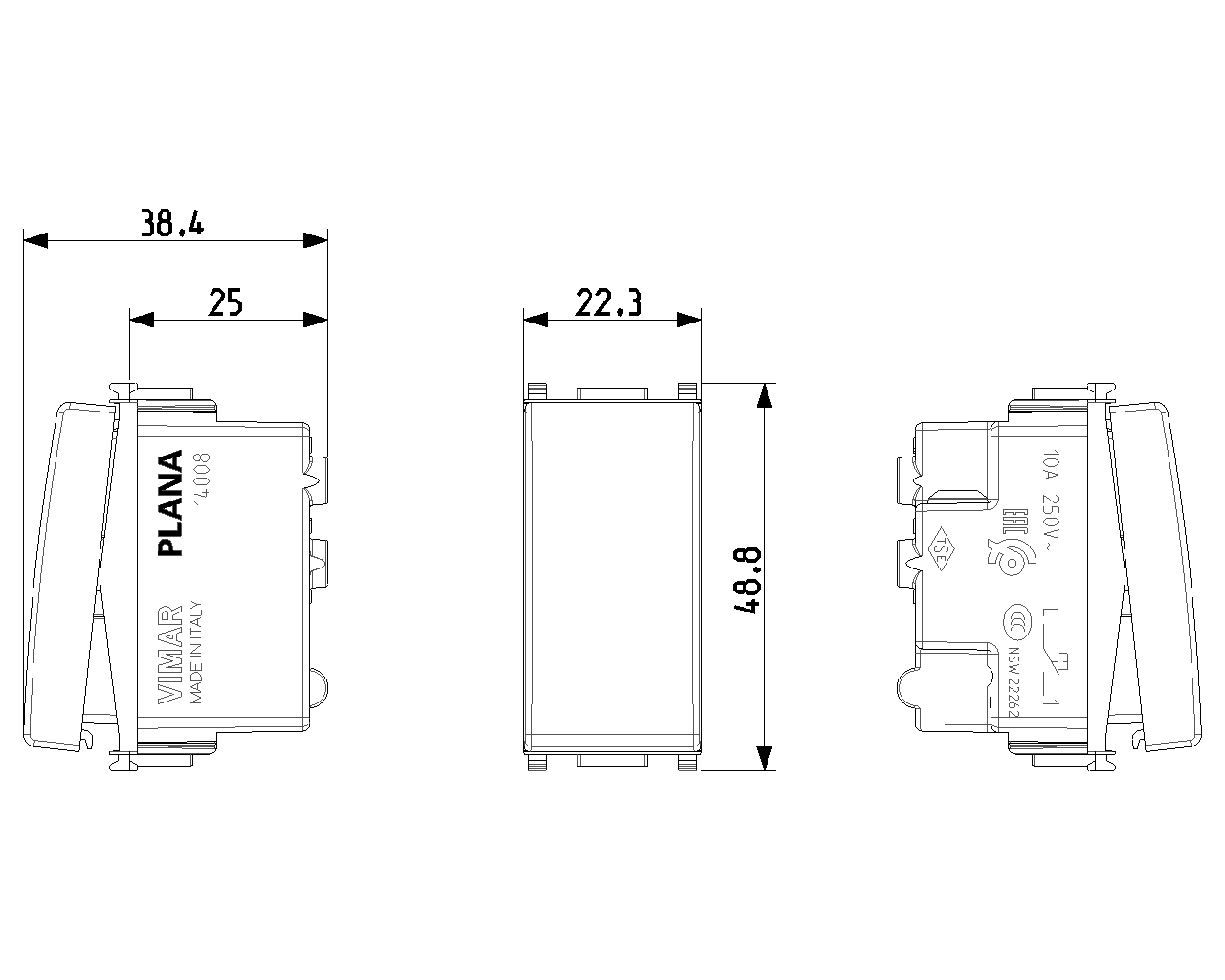

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,40 mm
Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352106482
1 NR
4.1x2.8x5.3 [cm]
26.75 [g]
Barcode Qty 50 NR
8007352106499
50 NR
21.6x11.6x14.3 [cm]
1,338 [g]
Barcode Qty 500 NR
8007352263192
500 NR
57.5x22.5x30 [cm]
13,840 [g]
