2P+E 5A English SICURY outlet white - 14214

Pdf
14214

Plana / Devices / Other standards socket outlets

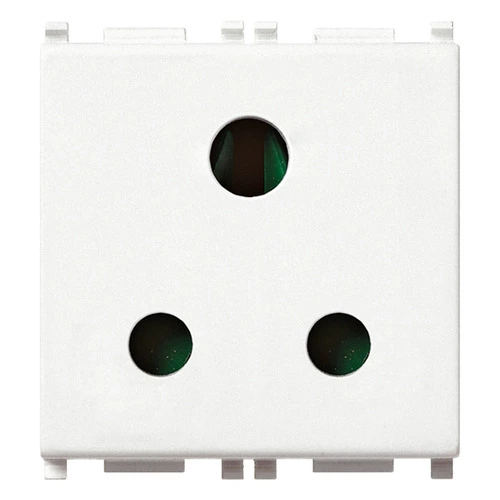

2P+E 5A English SICURY outlet white
2P+E 5 A 250 V~ SICURY socket outlet, English standard, white - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
British Standard
With built-in USB power supply
No
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
Without imprint
Connection type
Screwed terminal
With hinged lid
No
With child-protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (akin)
9003
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
5 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
For heavy conditions (in accordance with VDE)
No
Impact strength
Other
Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
27,30 mm
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352471764
1 NR
5.1x4.3x5.3 [cm]
43.2 [g]
Barcode Qty 5 NR
8007352471771
5 NR
14.4x11.6x66 [cm]
247.5 [g]
