Wiring devices / Traditional wiring devices / PLANA / Devices

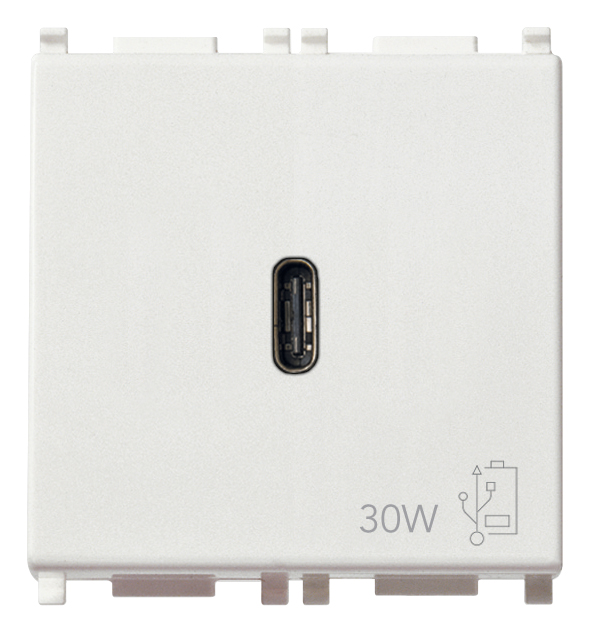

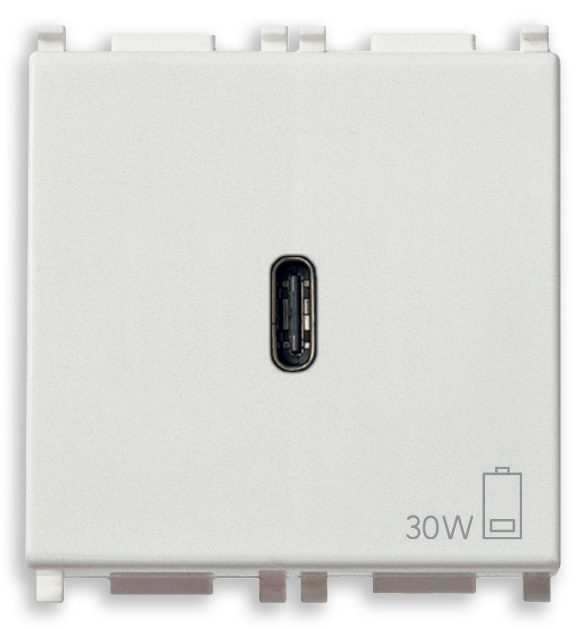

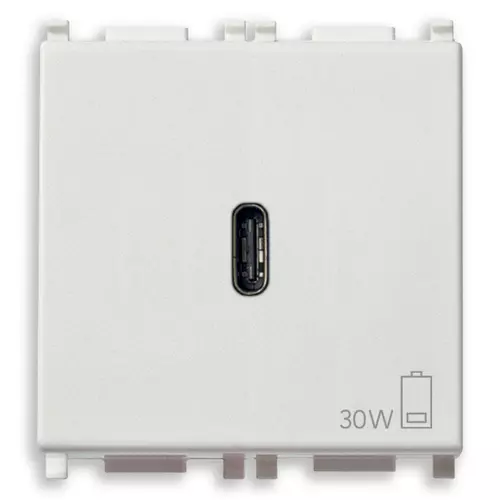

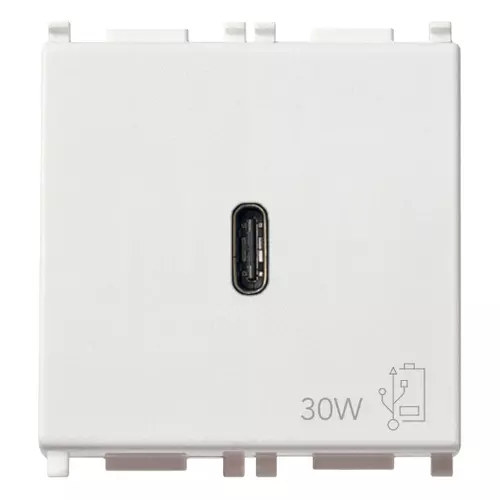

USB-C supply unit 30W PD white
30 W USB power supply unit for electronic devices (e.g. notebooks, tablets, smartphones and phablets, cameras), 1 type C USB output, Power Delivery technology, 120-240 V~ 50/60 Hz power supply, white- 2 modules
- Device which supports USB Power Delivery fast charge, which provides faster charge levels than conventional technologies
Product Status
3 - Active
Sheets, Manuals, Documentation

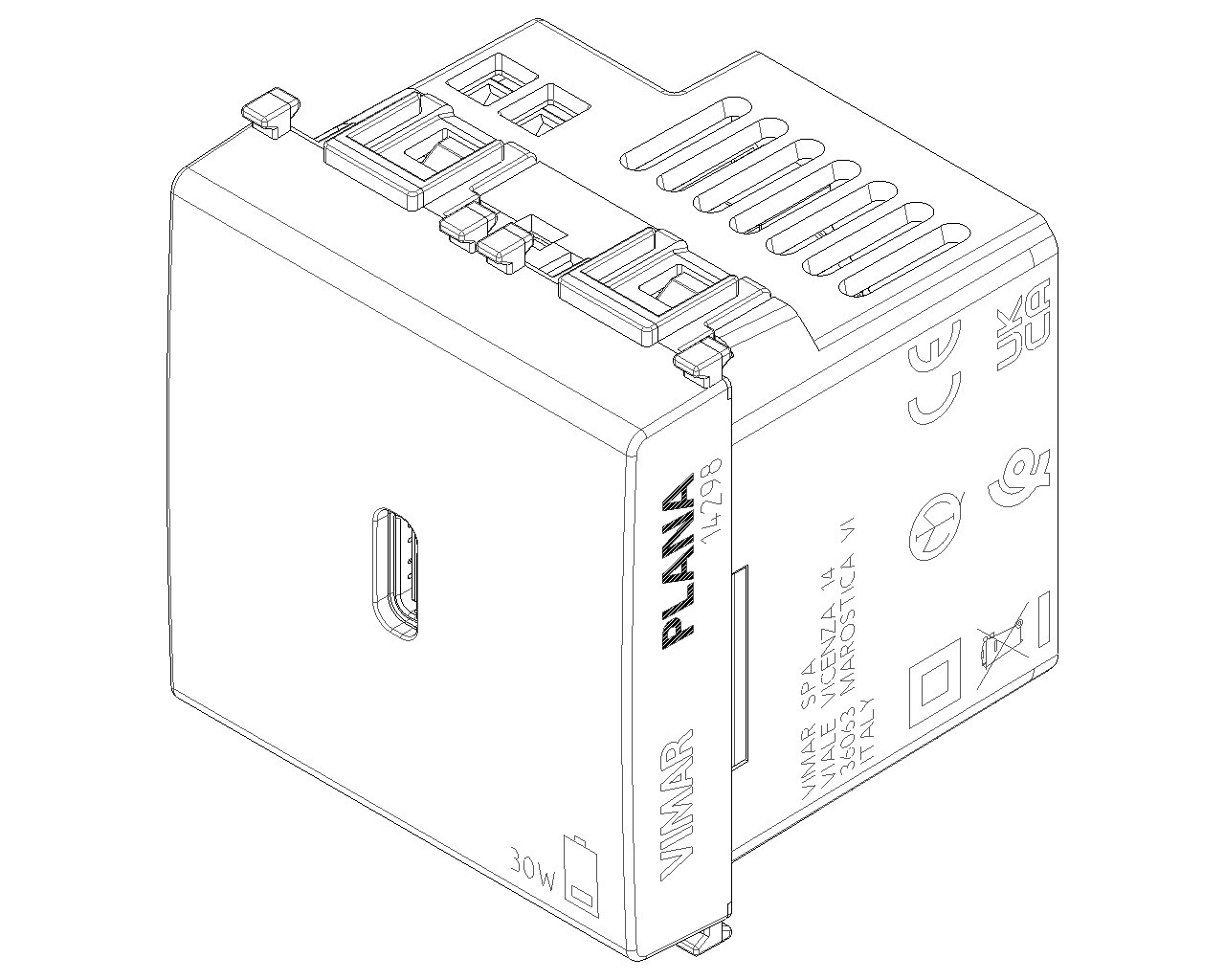

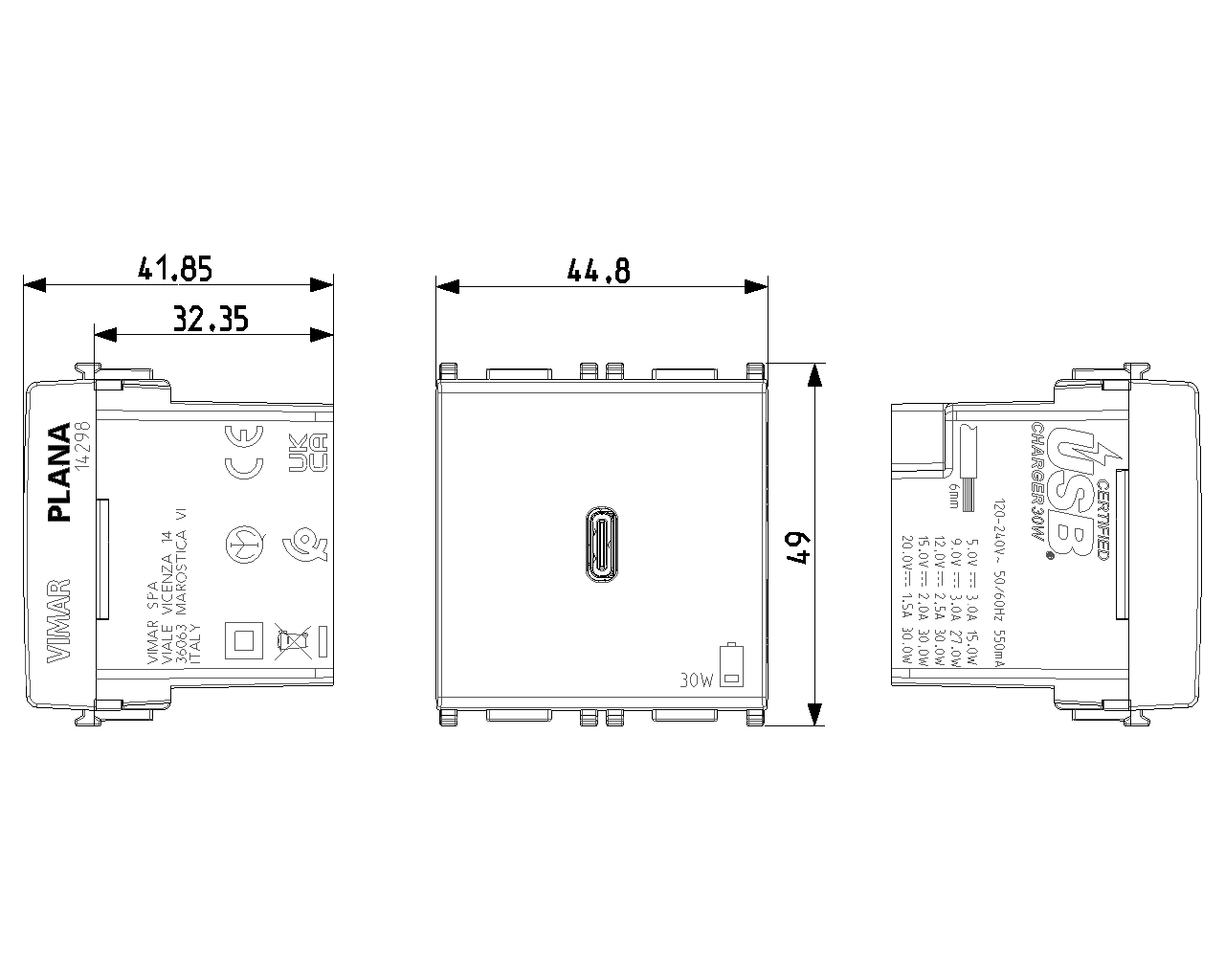

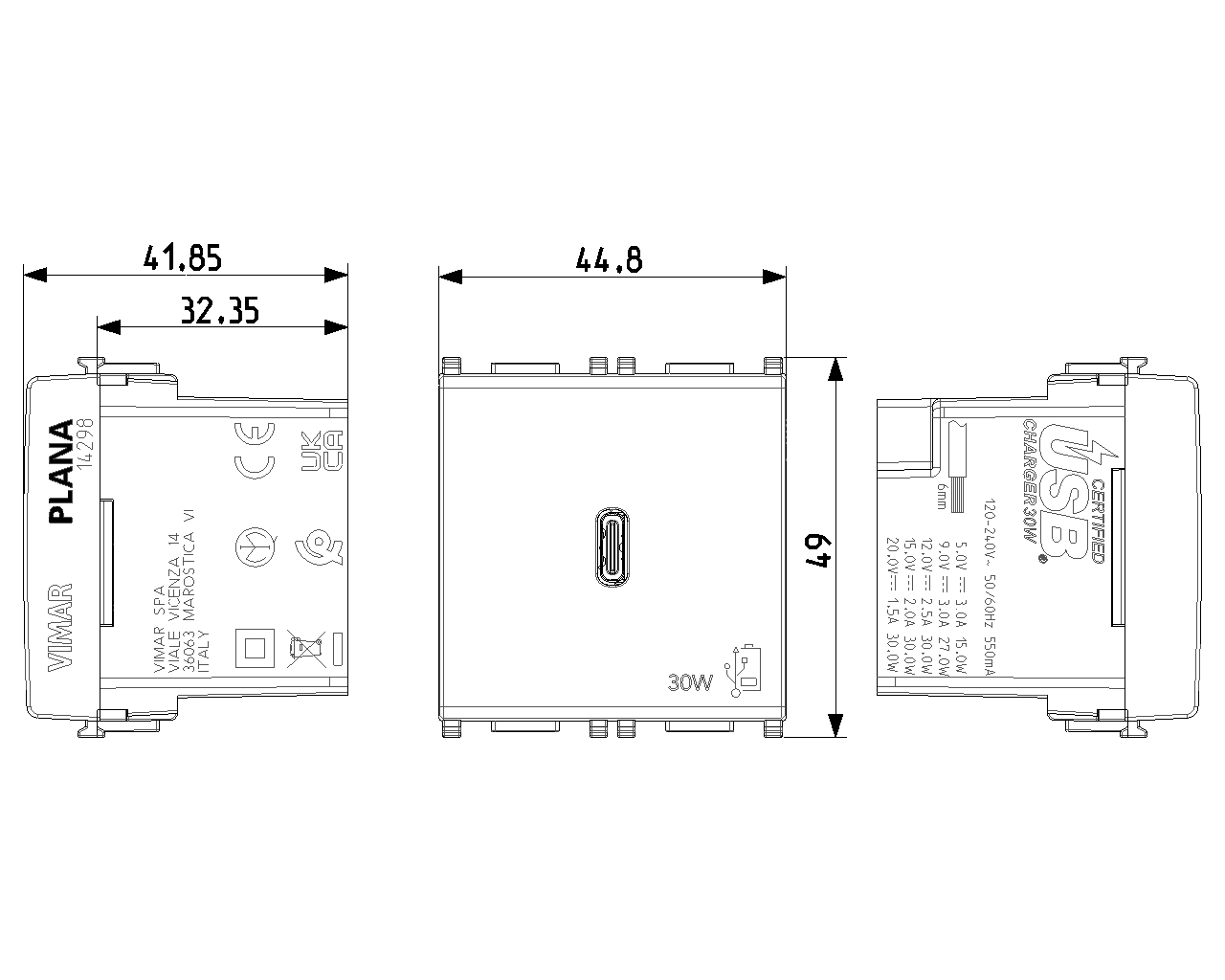

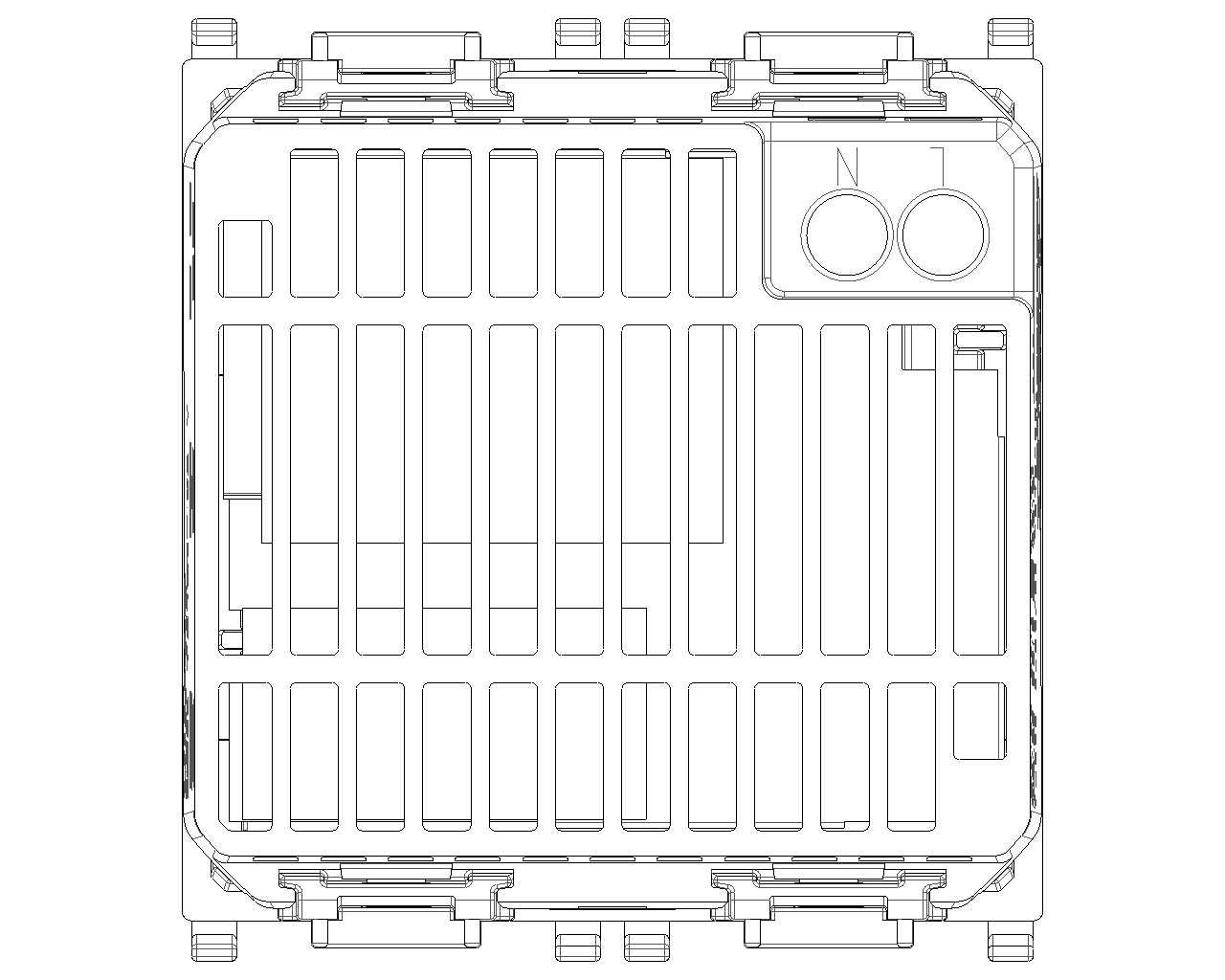

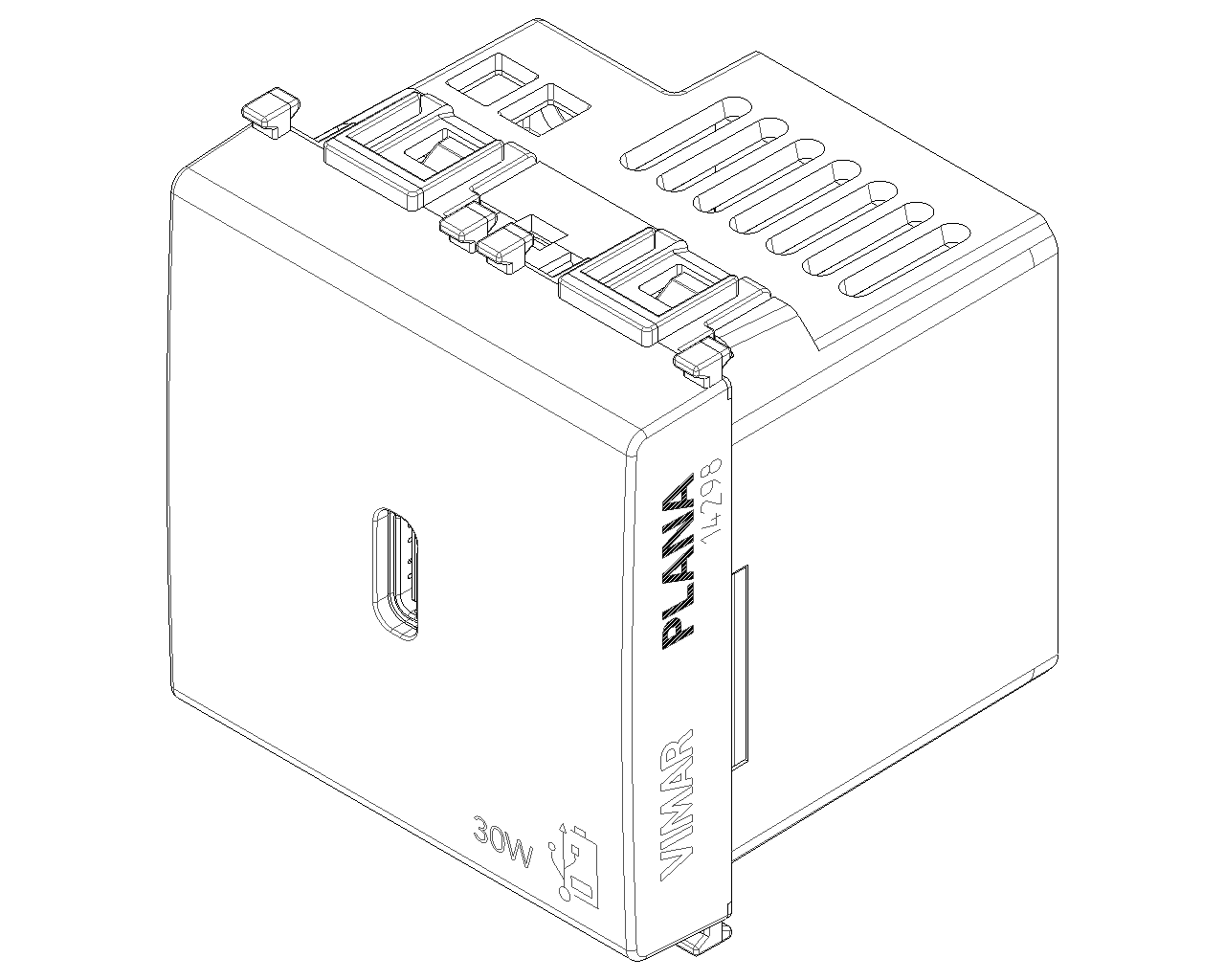

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
USB power supply
USB power supply
Model
Other
Other
Operating voltage
120,00 - 240,00 V
120,00 - 240,00 V
Frequency
50,00 - 60,00 HZ
50,00 - 60,00 HZ
Max. output current
3 mA
3 mA
Connection type
Screwed terminal
Screwed terminal
Mounting method
Flush-mounted
Flush-mounted
Colour
White
White
RAL-number
9003
9003
Device height
4.900,00 mm
4.900,00 mm
Min. depth of built-in installation box
37,00 mm
37,00 mm
Suitable for degree of protection (IP)
IP40
IP40
Anti-bacterial treatment
No
No
Minimum order quantity: 1 NR
Barcode
8007352704107
1 NR
6x5.4x5.2 [cm]
73.4 [g]
8007352704114
10 NR
28.1x13.1x6 [cm]
806.4 [g]
