BT Secondary phone jack white - 14326

Pdf

14326
Wiring devices / Traditional wiring devices / PLANA / Devices

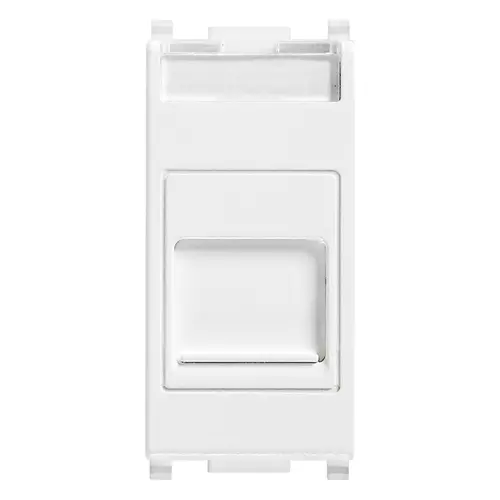

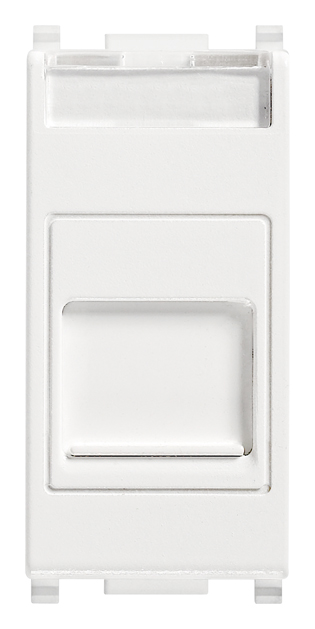

BT Secondary phone jack white
BT Secondary phone jack, screw terminals, white

Product Status
2 - Will be discontinued

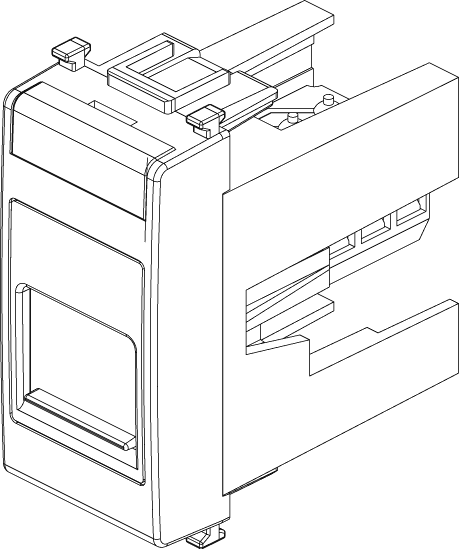

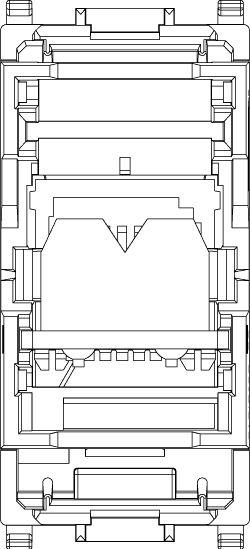

Drawings

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
Other
Support ring
No
With dust cover
Yes
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20

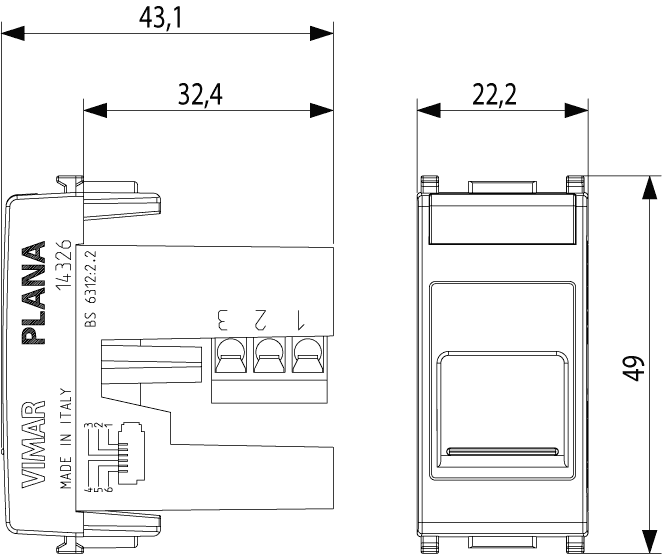

Device width
22,30 mm
Device height
49,00 mm
Device depth
43,10 mm

00. CE Marking - EU

43. UKCA mark - Great Britain

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352395206
1 NR
5.1x2.8x5.3 [cm]
23.2 [g]
Barcode Qty 10 NR
8007352395213
10 NR
14.4x11.6x6 [cm]
276.1 [g]
