Polarized 2P 6A 24A SELV outlet white - 14331

Pdf
14331

Plana / Devices / Socket outlets for signal reception

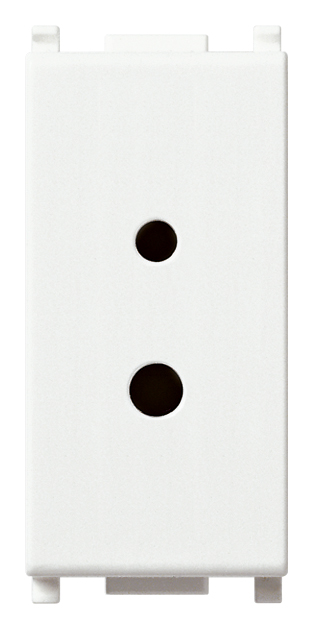

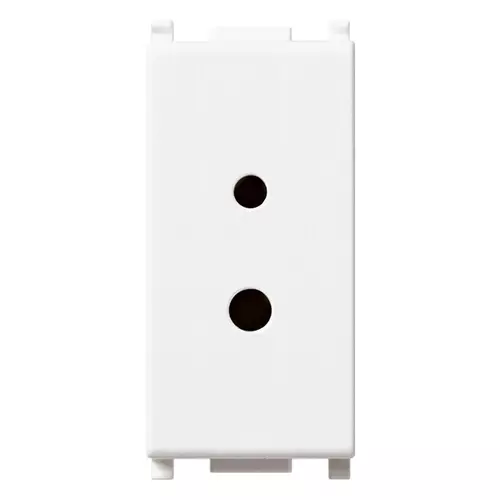

Polarized 2P 6A 24A SELV outlet white
Polarized 2P 6 A 24 V (SELV) socket outlet for plugs 01616 and 01617 (1 ø 3 mm pin and 1 ø 4 mm pin, 12,4 mm distance between centres), white. For Hi-Fi installations, HFTR reception, etc.

Product Status
3 - Active

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
Other
Support ring
No
With dust cover
No
With imprint
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
34,70 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352108820
1 NR
4.1x2.8x5.3 [cm]
23.93 [g]
Barcode Qty 20 NR
8007352108837
20 NR
21.4x11.6x6 [cm]
536.53 [g]
Barcode Qty 200 NR
8007352640030
200 NR
30.5x25.5x22.5 [cm]
5,740 [g]
