Polarized 2P 6A 24A SELV outlet Silver - 14332.SL

Pdf

14332.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

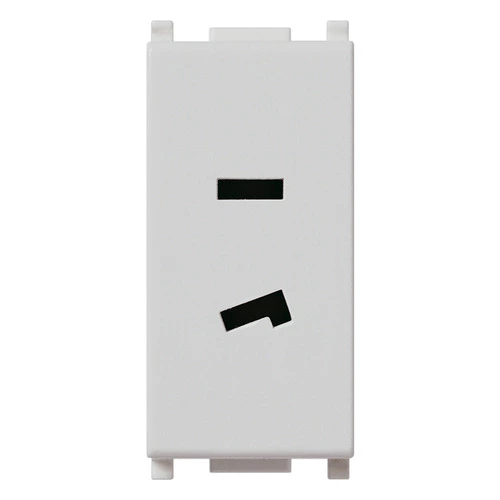

Polarized 2P 6A 24A SELV outlet Silver
Polarized 2P 6 A 24 V (SELV) socket outlet for plug 01099, Silver

Product Status
2 - Will be discontinued

Drawings

Class group
Domestic switching devices
Class
Socket outlet
With hinged lid
No
Colour
Silver
RAL-number (similar)
9006
Metallic colour
No
Transparent
No
Lockable
No
Surface protection
Lacquered
Nominal current
6 A
Nominal voltage
24 V
Device depth
33,50 mm

00. CE Marking - EU

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352310261
1 NR
4.1x2.8x5.3 [cm]
23.33 [g]
Barcode Qty 20 NR
8007352310278
20 NR
21.4x11.6x6 [cm]
526 [g]
Question: Which pin is the positive and which one is the negative?
Answer: The single flat pin is the ˝+˝ and the L-shaped one is the ˝-˝.
