Step marker lamp 230V - 14390

Pdf
Vimar - 14390 - Step marker lamp 230V
Vimar - 14390 - Step marker lamp 230V

14390
Wiring devices / Traditional wiring devices / PLANA / Devices

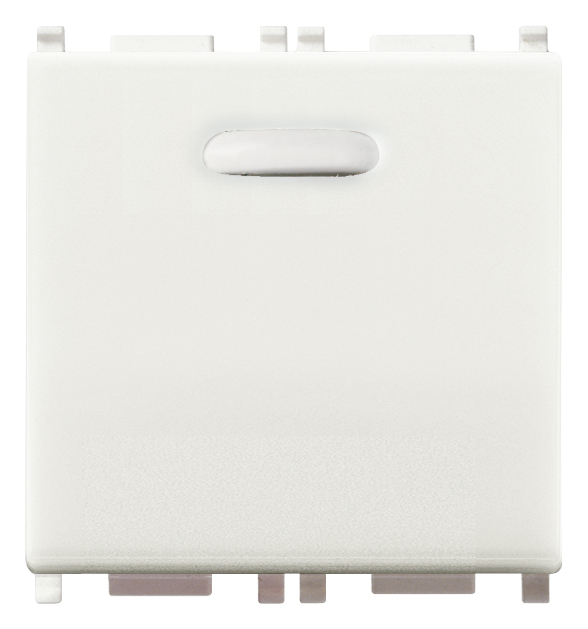

Step marker lamp 230V
Step marker lamp, 230 V~ 3 W max, with adjustable beam, for 14770, 14771, 14776 and 14777 lamps, white diffuser, white - 2 modules. Provided without lamp

Product Status
2 - Will be discontinued

Drawings

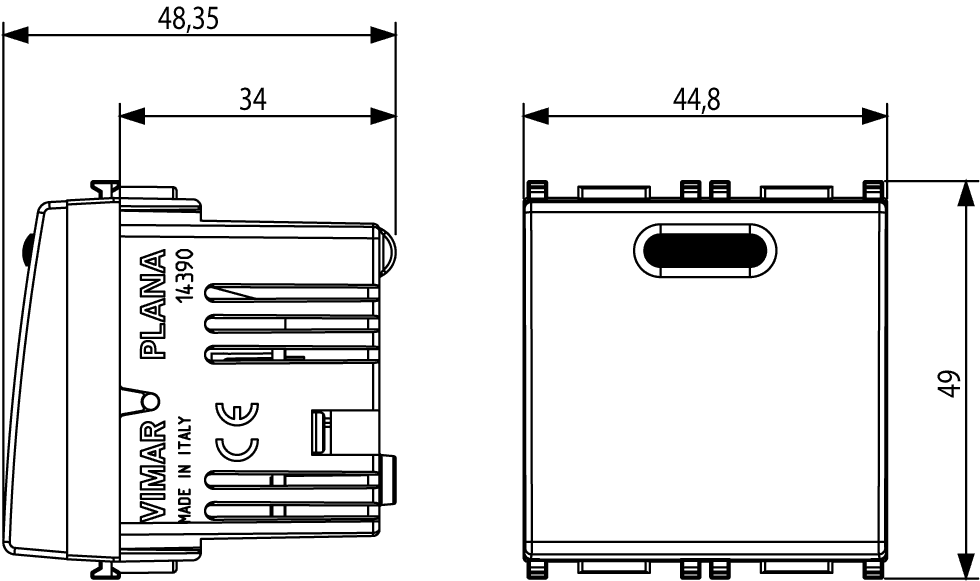

view encumbered art. 14390
PNG DXF
rear view art. 14390
PNG DXF

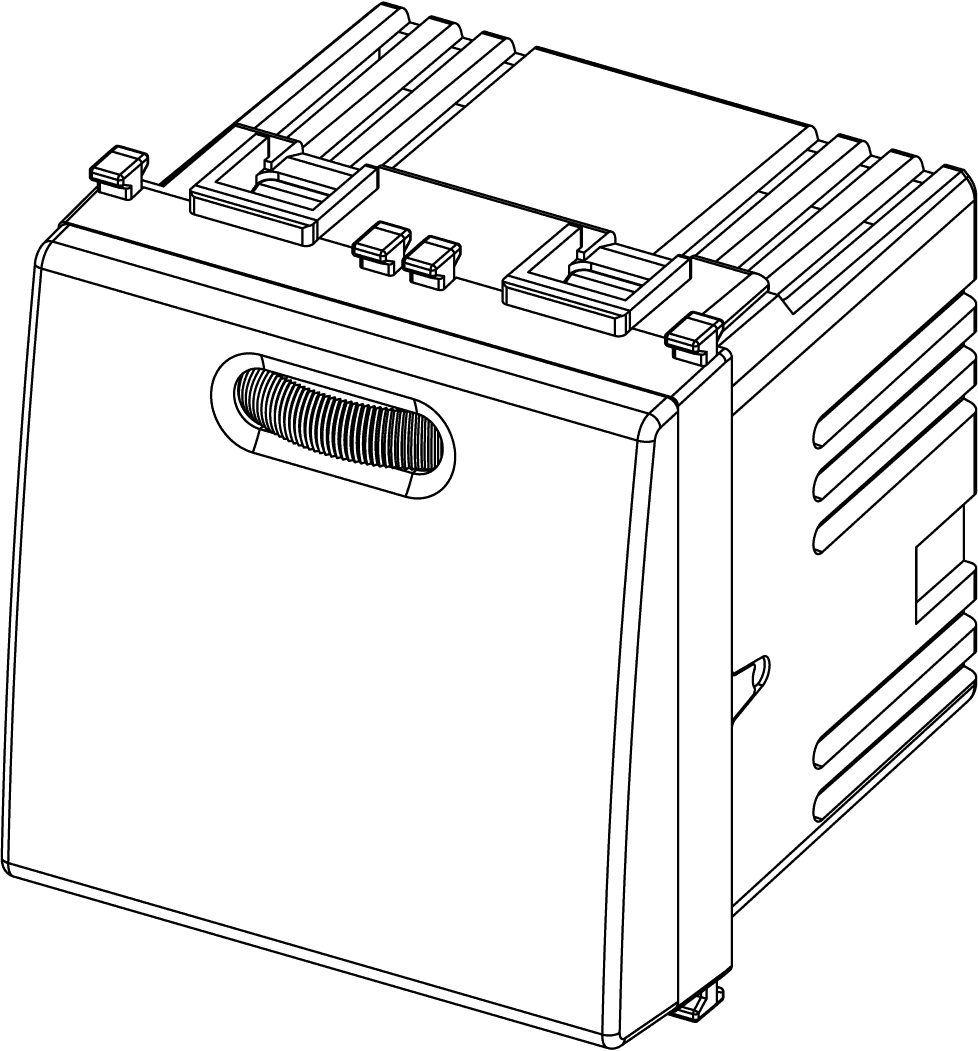

3D view art. 14390
PNG DXF
Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Number of modules (module system)
2
With light source
No
Lamp type
Incandescent lamp
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Colour light source
White
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 V
Max. lamp power
3 W

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352117662
1 NR
6x5.4x5.3 [cm]
41.7 [g]
Barcode Qty 10 NR
8007352117679
10 NR
28.1x13.1x6 [cm]
502 [g]
Barcode Qty 120 NR
8007352644939
120 NR
38.5x29x30 [cm]
6,504 [g]
