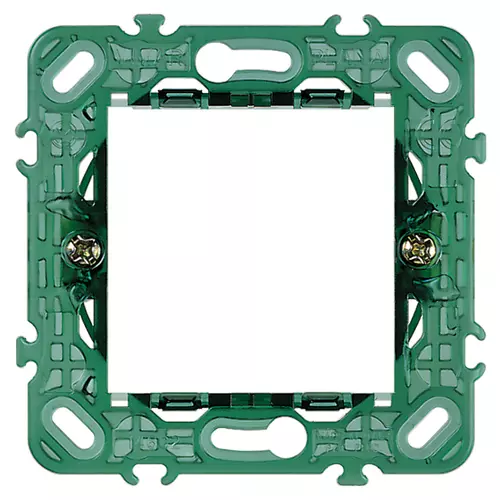

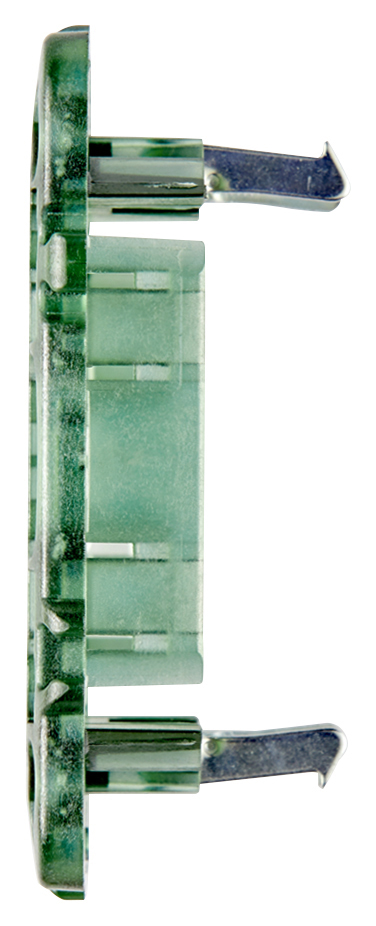

Frame 2M +claws 71mm
2-module mounting frame, with claws, for ø 60 mm mounting boxes, modular, 71 mm distance between centres

  • The transparency helps the installation and the wiring of devices
  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • The hooking teeth encourage fixing in series for the installation of multiple modules

Product Status
3 - Active

You may also be interested in

14602.C
14602.C - Frame protection 2M Plana/Arké

Drawings

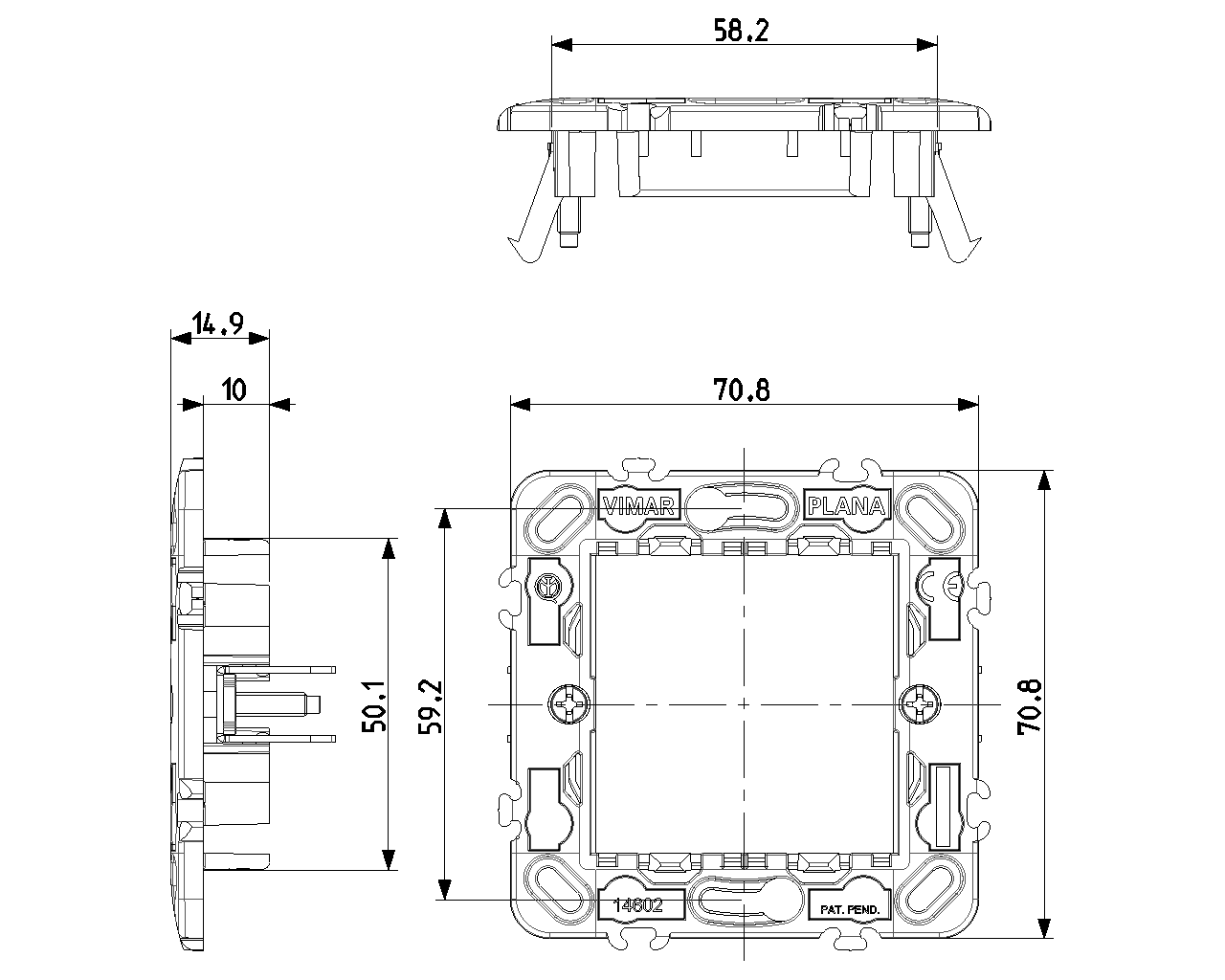

view encumbered art. 14602
PNG DXF

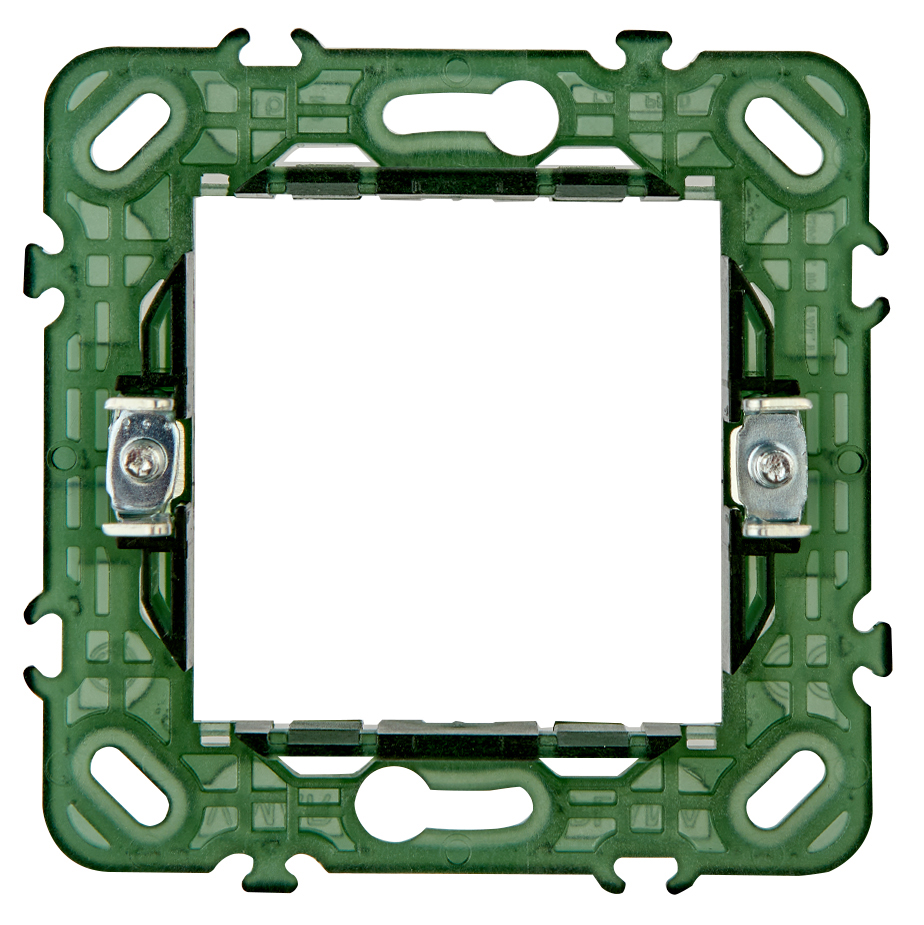

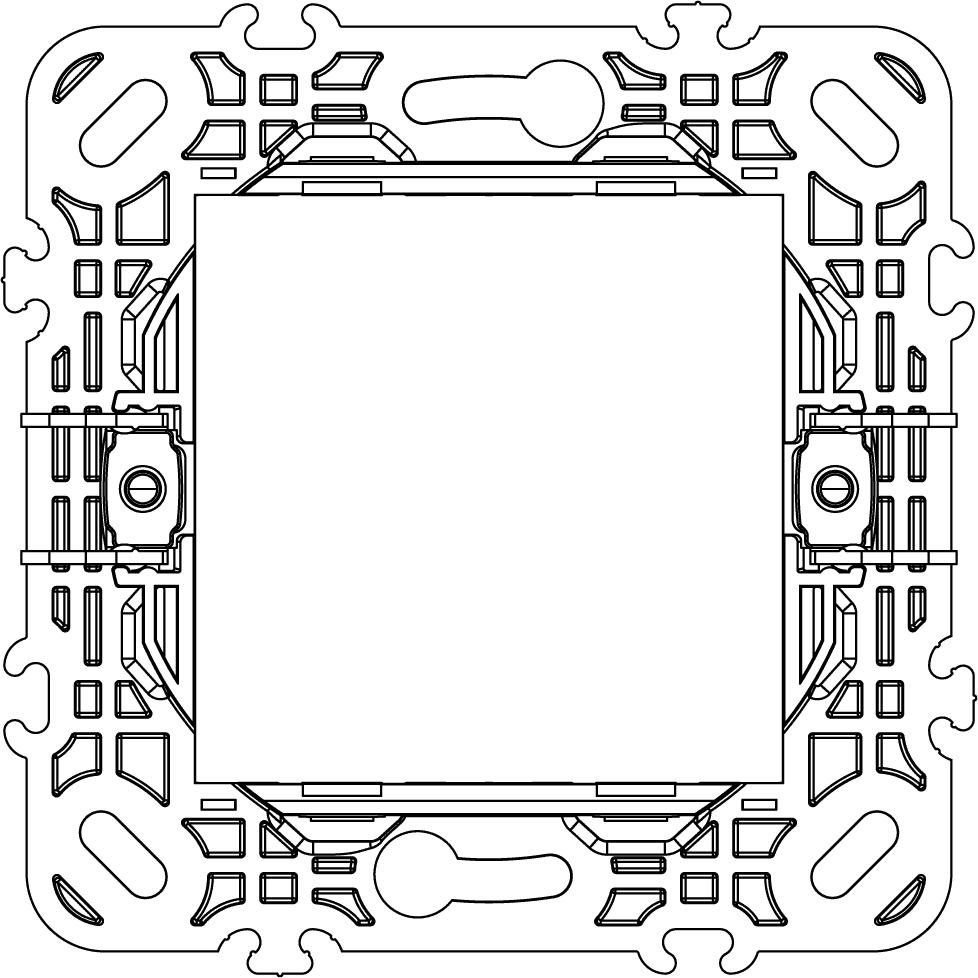

rear view art. 14602
PNG DXF

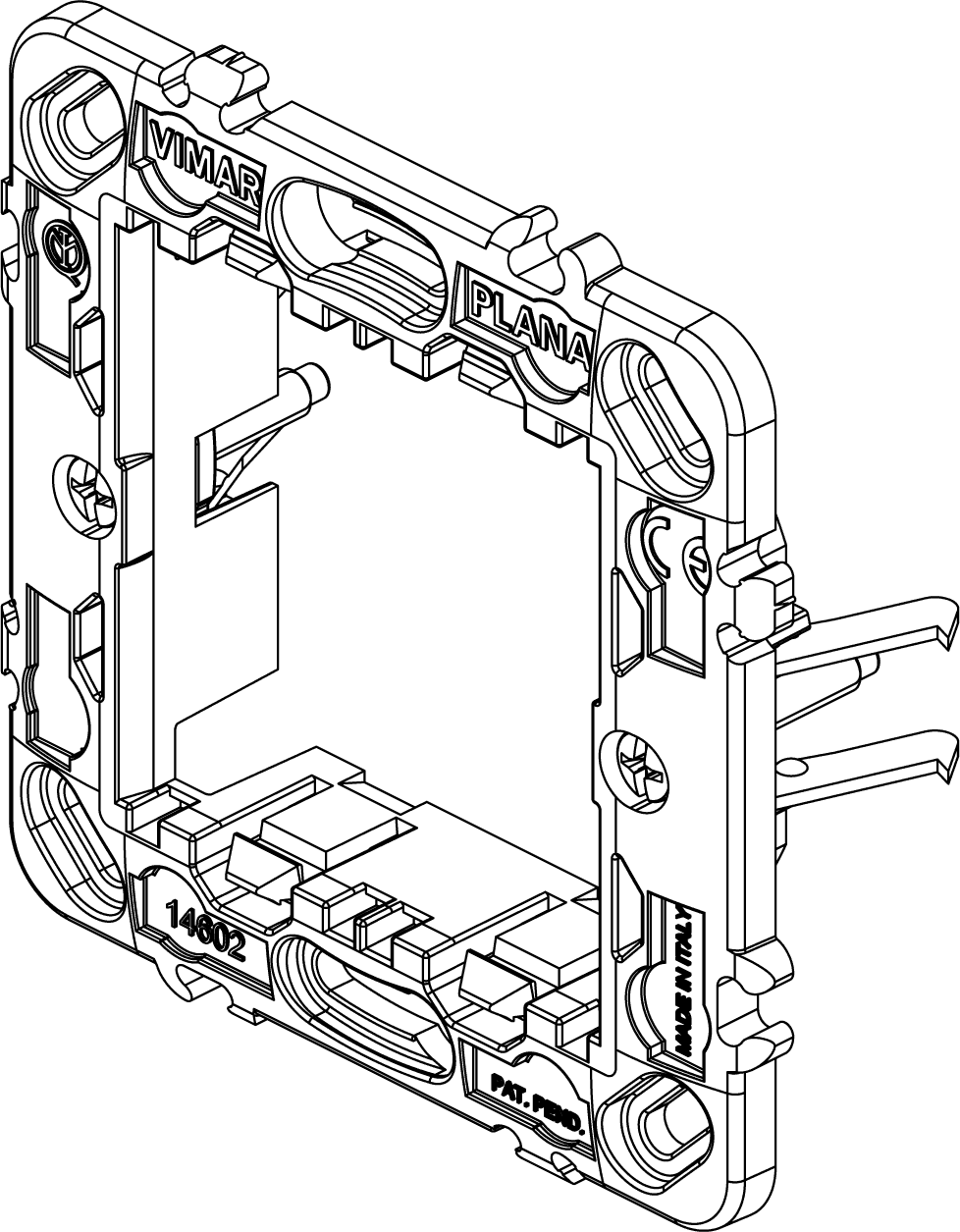

3D view art. 14602
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with claw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352108929
1 NR
7.4x7.4x1.5 [cm]
21.4 [g]
Barcode Qty 50 NR
8007352108936
50 NR
28.4x24.4x11.9 [cm]
1,234.67 [g]
Barcode Qty 300 NR
8007352361423
300 NR
59.5x38.5x26.5 [cm]
8,208.02 [g]
