Table frame 8M white - 14788

14788

Plana / Mounting boxes / Table mounting

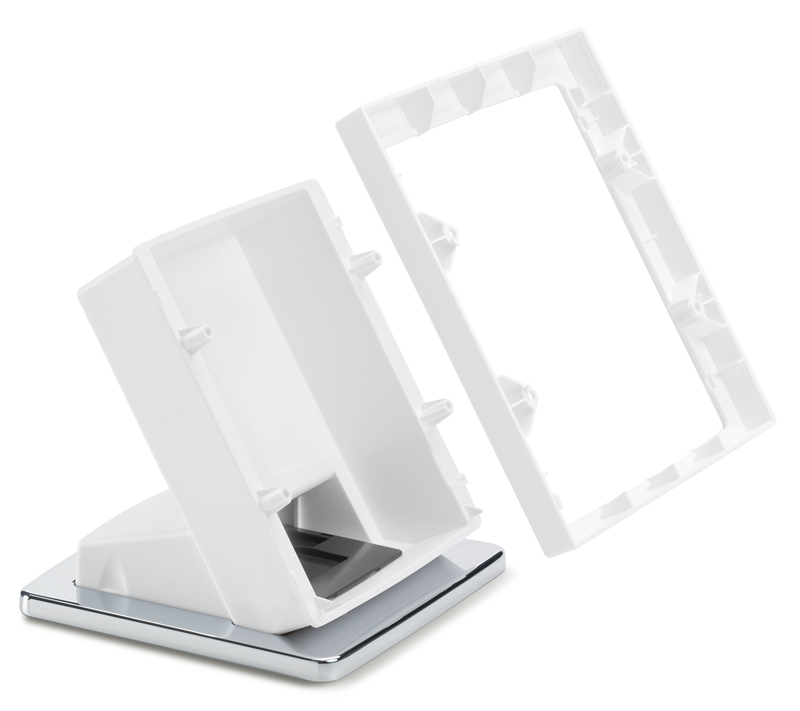

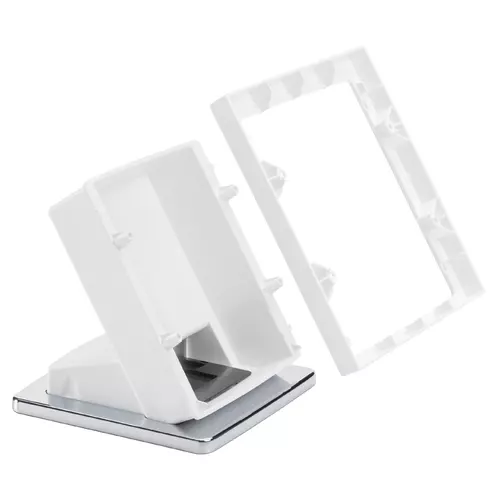

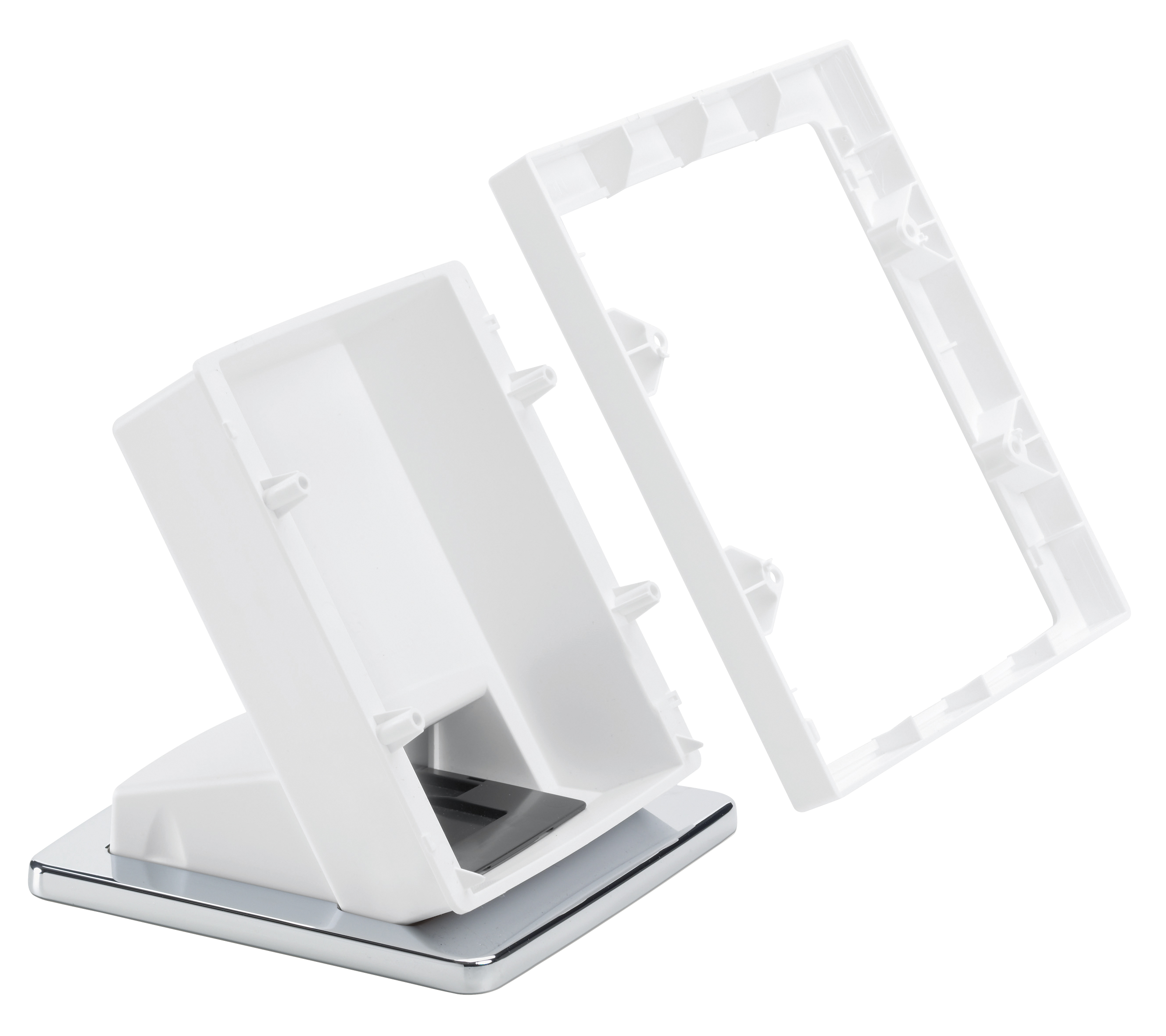

Table frame 8M white
Table mounting box, 8 (4+4) modules, white. Delivered with frame for 8-module cover plate

Product Status
3 - Active

Class group
Domestic switching devices
Class
Surface mounted housing for flush mounte
Assembly arrangement
Other
Suitable for modular domestic
Yes
Number of modules (module syst
8
Number of units
8
Mounting direction
Horizontal
Material
Plastic
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (akin)
9003
Transparent
No
With cover frame included
No
With duct entry
No
With cable entry
Yes
With screw gland entry
No
Shock resistant
Yes
Degree of protection (IP)
IP20

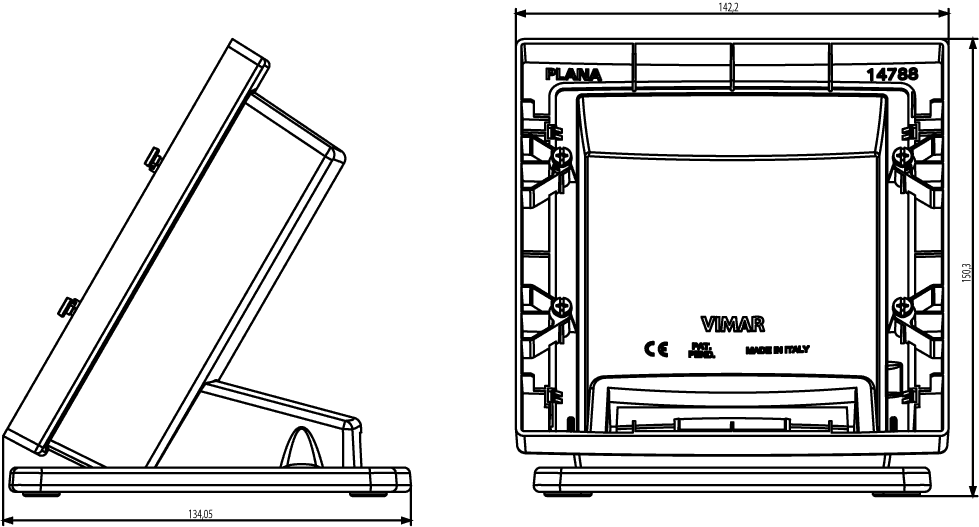

Width of device
142,30 mm
Height of device
150,30 mm
Depth of device
134,00 mm
Minimum order quantity: 1 NR

Barcode

8007352353947
1 NR
19x16.5x13 [cm]
976.1 [g]
