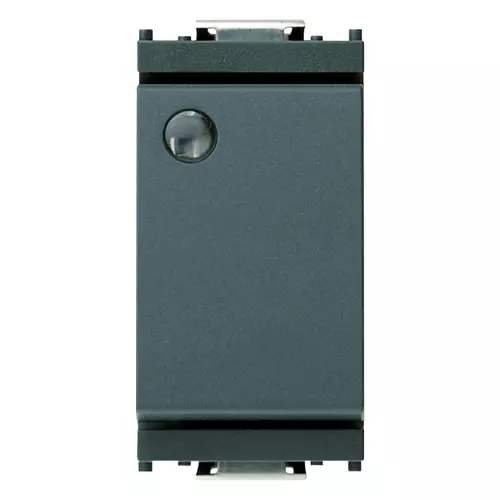

1P 16AX 1-way switch luminous grey
1P 16 AX 250 V~ 1-way switch, luminous, for signalling unit. Provided without signalling unit. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 16021
PNG DXF
rear view art. 16021
PNG DXF
3D view art. 16021
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
1.600 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Width of device
24,80 mm
Height of device
50,10 mm
Depth of device
36,50 mm
Built-in depth
23,30 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IRAM - Argentina

28. NSW / RCM - Australia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352078208
1 NR
4.1x2.8x5.3 [cm]
27.47 [g]
Barcode Qty 20 NR
8007352078215
20 NR
21.4x11.6x6 [cm]
607.87 [g]
Barcode Qty 200 NR
8007352637092
200 NR
30.5x25.5x22.5 [cm]
6,740 [g]
