1P NC 16A push +NO contact grey - 16110

Pdf
16110

Idea / Devices / Devices - other functions

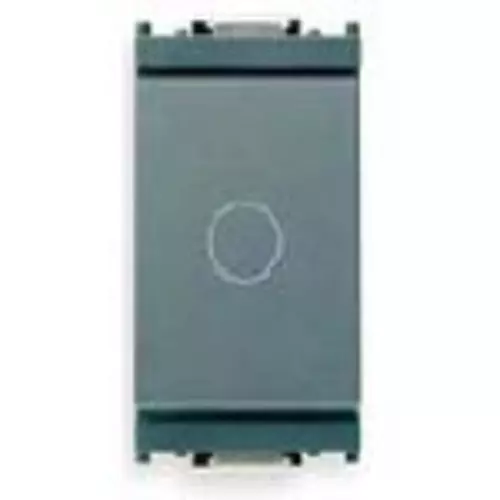

1P NC 16A push +NO contact grey
1P NC 16 A 250 V~ breaking-circuit pushbutton (OFF), with NO 16 A auxiliary contact, grey

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Contacts
1 breaker contact (NC)
Number of poles
1
Feedback-signal contact
No
Number of rockers
1
Number of modules (module system)
1
With lighting
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (akin)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
16,00 A
Width of device
24,80 mm
Height of device
50,10 mm
Depth of device
36,10 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352003729
1 NR
5.1x2.8x5.3 [cm]
33.87 [g]
Barcode Qty 20 NR
8007352000414
20 NR
27x11.6x6 [cm]
745 [g]
