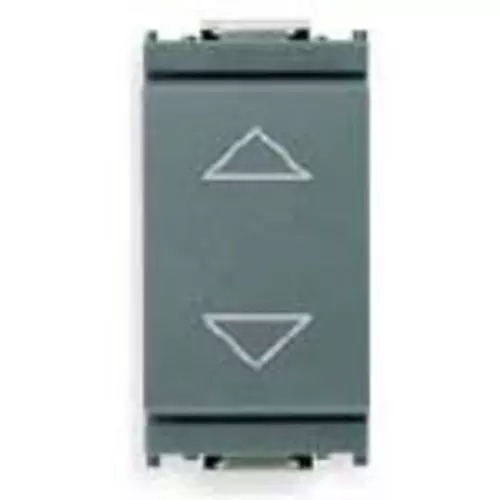

2P 10AX 2-way switch grey
2P 10 AX 250 V~ 2-way switch (6 terminals) with directional arrows and central OFF position, grey. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Rocker
Contacts
2 change-over contacts
Number of poles
2
Feedback-signal contact
No
Number of rockers
1
Number of modules (module system)
1
With lighting
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (akin)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10,00 A
Width of device
24,80 mm
Height of device
50,10 mm
Depth of device
43,60 mm
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352021846
1 NR
5.1x2.8x5.3 [cm]
42.47 [g]
Barcode Qty 10 NR
8007352263529
10 NR
14.4x11.6x6 [cm]
464.87 [g]
Barcode Qty 120 NR
8007352643376
120 NR
36.5x33x13.5 [cm]
6,000 [g]
Question: Can the product be fully opened by pressing the push button once?
Answer: Yes. Upon pressure, the product even remains on after you release it, allowing the continuous closure of the circuit to which it is connected without having to hold it down.
