2P 10A 2-way push button grey - 16155

Pdf
Vimar - 16155 - 2P 10A 2-way push button grey
Vimar - 16155 - 2P 10A 2-way push button grey

16155
Wiring devices / Traditional wiring devices / IDEA / Devices

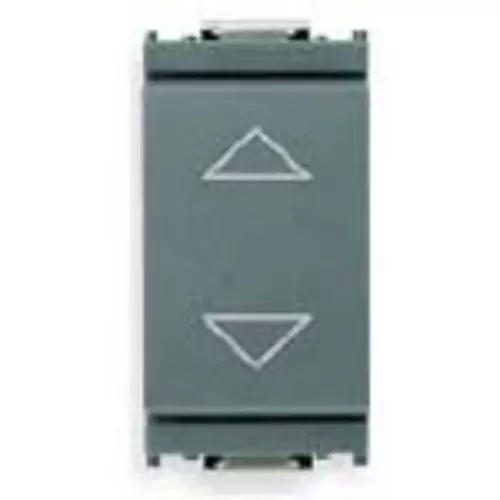

2P 10A 2-way push button grey
2P 10 A 250 V~ 2-way push button (6 terminals) with directional arrows and central OFF position, grey

Product Status
3 - Active

Drawings

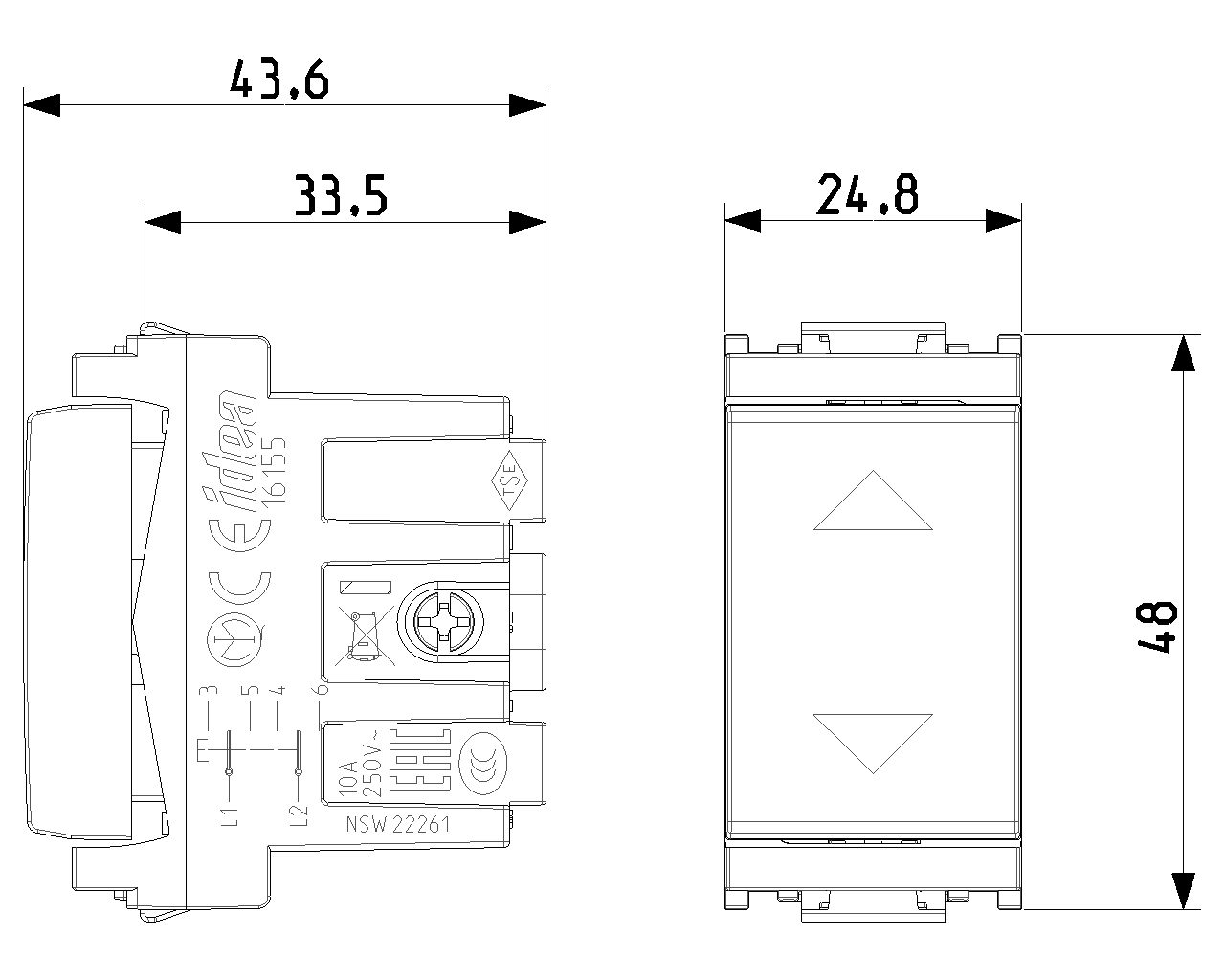

view encumbered art. 16155
PNG DXF

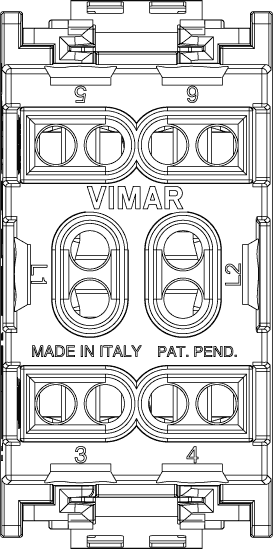

rear view art. 16155
PNG DXF

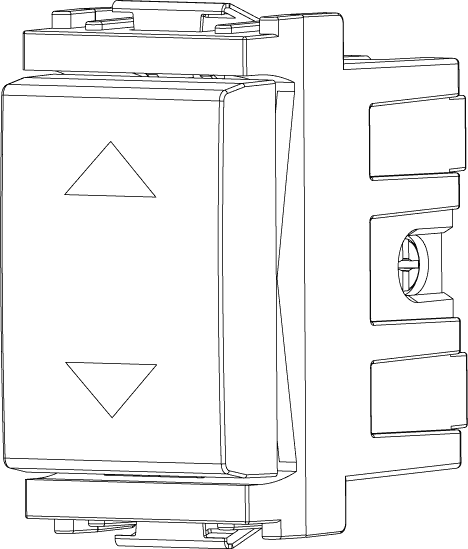

3D view art. 16155
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
2
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
24,80 mm
Device height
50,10 mm
Device depth
43,60 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

20. IQC - Argentina

28. NSW - Australia

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352003736
1 NR
5.1x2.8x5.3 [cm]
42.47 [g]
Barcode Qty 10 NR
8007352264120
10 NR
14.4x11.6x6 [cm]
470.27 [g]
Barcode Qty 120 NR
8007352643338
120 NR
36.5x33x13.5 [cm]
6,060 [g]
