2P+E 10A P11 outlet grey - 16201

Pdf
16201

Idea / Devices / Italian standard socket outlets

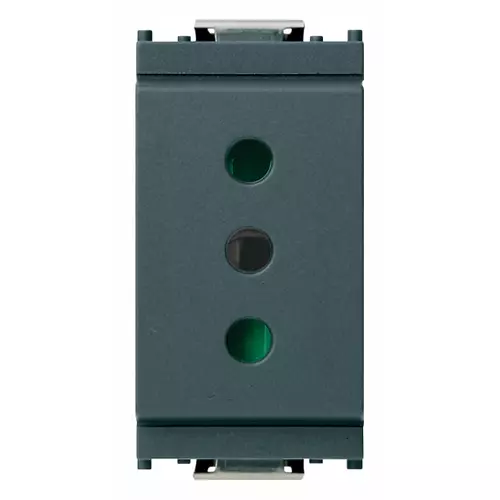

2P+E 10A P11 outlet grey
2P+E 10 A 250 V~ SICURY socket outlet, Italian standard P11, grey

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P11
With built-in USB power supply
No
Number of units
1
Number of modules (module syst
1
Number of socket outlets switc
0
Imprint/indication
Without imprint
Connection type
Screwed terminal
With hinged lid
No
With child-protection
Yes
Label space/information surfac
Yes
Colour
Grey
RAL-number (akin)
7015
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
10 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protect
IP20
For heavy conditions (in accor
No
Impact strength
Other
Width of device
24,80 mm
Height of device
50,10 mm
Depth of device
35,00 mm
Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352002845
1 NR
4.1x2.8x5.3 [cm]
28.8 [g]
Barcode Qty 50 NR
8007352000094
50 NR
21.4x11.6x14.2 [cm]
1,537.87 [g]
Barcode Qty 500 NR
8007352263086
500 NR
57.5x22.5x30 [cm]
15,899.33 [g]
Barcode Qty 10,500 NR
8007352352438
10,500 NR
80x120x103 [cm]
345,000 [g]
