Socket with 3 RCA connectors grey - 16333

Pdf
Vimar - 16333 - Socket with 3 RCA connectors grey
Vimar - 16333 - Socket with 3 RCA connectors grey

16333
Wiring devices / Traditional wiring devices / IDEA / Devices

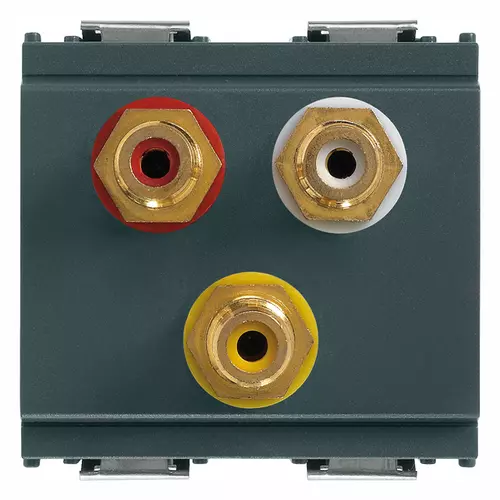

Socket with 3 RCA connectors grey
Socket outlet with 3 RCA connectors, screw terminals, grey

Product Status
2 - Will be discontinued

Drawings

view encumbered art. 16333
PNG DXF
rear view art. 16333
PNG DXF
3D view art. 16333
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
RCA
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
49,80 mm
Device height
50,10 mm
Device depth
32,80 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352423749
1 NR
5.1x4.3x5.3 [cm]
37.38 [g]
Barcode Qty 20 NR
8007352423756
20 NR
26.9x11.6x9 [cm]
849.3 [g]
Barcode Qty 240 NR
8007352425149
240 NR
38x28.5x35.5 [cm]
10,711.6 [g]
