Polarized 2P 6A 24V SELV outlet grey - 16345

Pdf
16345

Idea / Devices / Socket outlets for signal reception

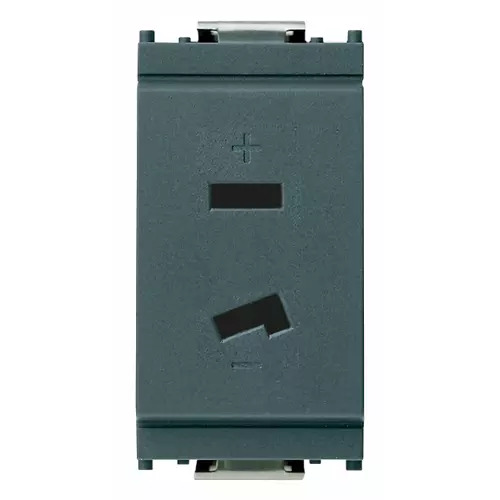

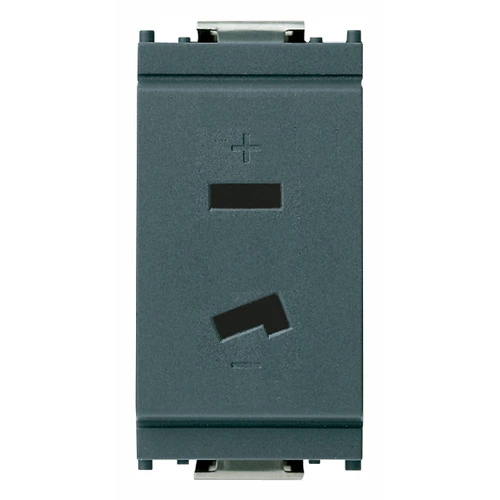

Polarized 2P 6A 24V SELV outlet grey
Polarized 2P 6 A 24 V (SELV) socket outlet for plug 01099, grey

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Insert/cover for communication technolog
Assembly arrangement
Modular device for domestic switching devices
Utilization
Other
Support ring
No
With dust cover
No
With imprint
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (akin)
7015
Transparent
No
Number of modules (module syst
1
With strain relief
No
Luster terminal
No
Suitable for degree of protect
IP20
Width of device
24,80 mm
Height of device
50,10 mm
Depth of device
34,50 mm
Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352003828
1 NR
4.1x2.8x5.3 [cm]
25.27 [g]
Barcode Qty 50 NR
8007352000186
50 NR
21.4x11.6x14.2 [cm]
2,550 [g]
