9P SUB D socket connector grey - 16361

Pdf
Vimar - 16361 - 9P SUB D socket connector grey
Vimar - 16361 - 9P SUB D socket connector grey

16361
Wiring devices / Traditional wiring devices / IDEA / Devices

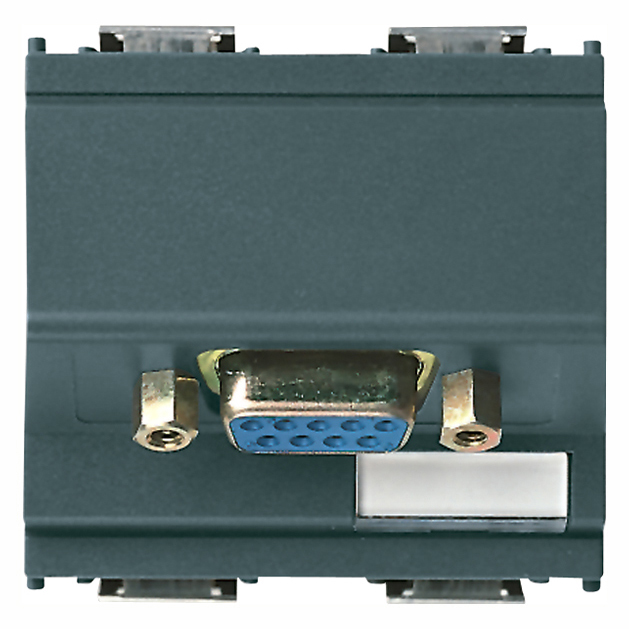

9P SUB D socket connector grey
9 pin SUB-D socket connector, soldering, grey - 2 modules

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
D-sub-miniature
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Number of modules (module system)
2
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
49,80 mm
Device height
50,10 mm
Device depth
34,40 mm

00. CE Marking - EU

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352082298
1 NR
5.1x4.3x5.3 [cm]
27.33 [g]
Barcode Qty 10 NR
8007352083066
10 NR
26.9x11.6x4.9 [cm]
338.67 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
