Blank module grooved front grey - 16540

Pdf
Vimar - 16540 - Blank module grooved front grey
Vimar - 16540 - Blank module grooved front grey

16540
Wiring devices / Traditional wiring devices / IDEA / Blank module

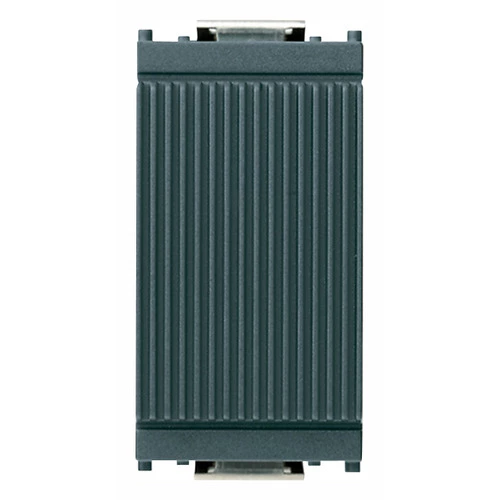

Blank module grooved front grey
Blank cover, grooved front, grey

Product Status
3 - Active

Drawings

view encumbered art. 16540
PNG DXF
rear view art. 16540
PNG DXF
3D view art. 16540
PNG DXF
Class group
Domestic switching devices
Class
Push button
Method of operation
Other
Number of modules (module system)
100
Nominal voltage
0 V
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Mounting with claw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Device width
24,80 mm
Device height
50,20 mm
Device depth
20,50 mm

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352058484
1 NR
2.5x5x2 [cm]
6.5 [g]
Barcode Qty 10 NR
8007352146037
10 NR
31x5x2 [cm]
65.2 [g]
Barcode Qty 100 NR
8007352000018
100 NR
28.2x11.1x10 [cm]
753.6 [g]
Barcode Qty 1,000 NR
8007352263369
1,000 NR
57.5x22.5x30 [cm]
8,092 [g]
