Flush mounting box - 16895

Pdf
Vimar - 16895 - Flush mounting box
Vimar - 16895 - Flush mounting box

16895
System infrastructure / Enclosures and control units / Connector block boxes / Installation accessories

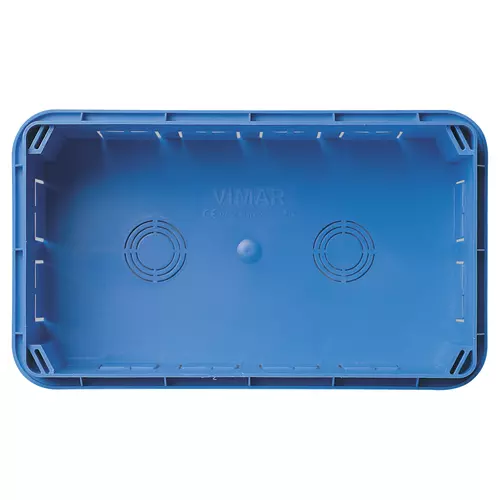

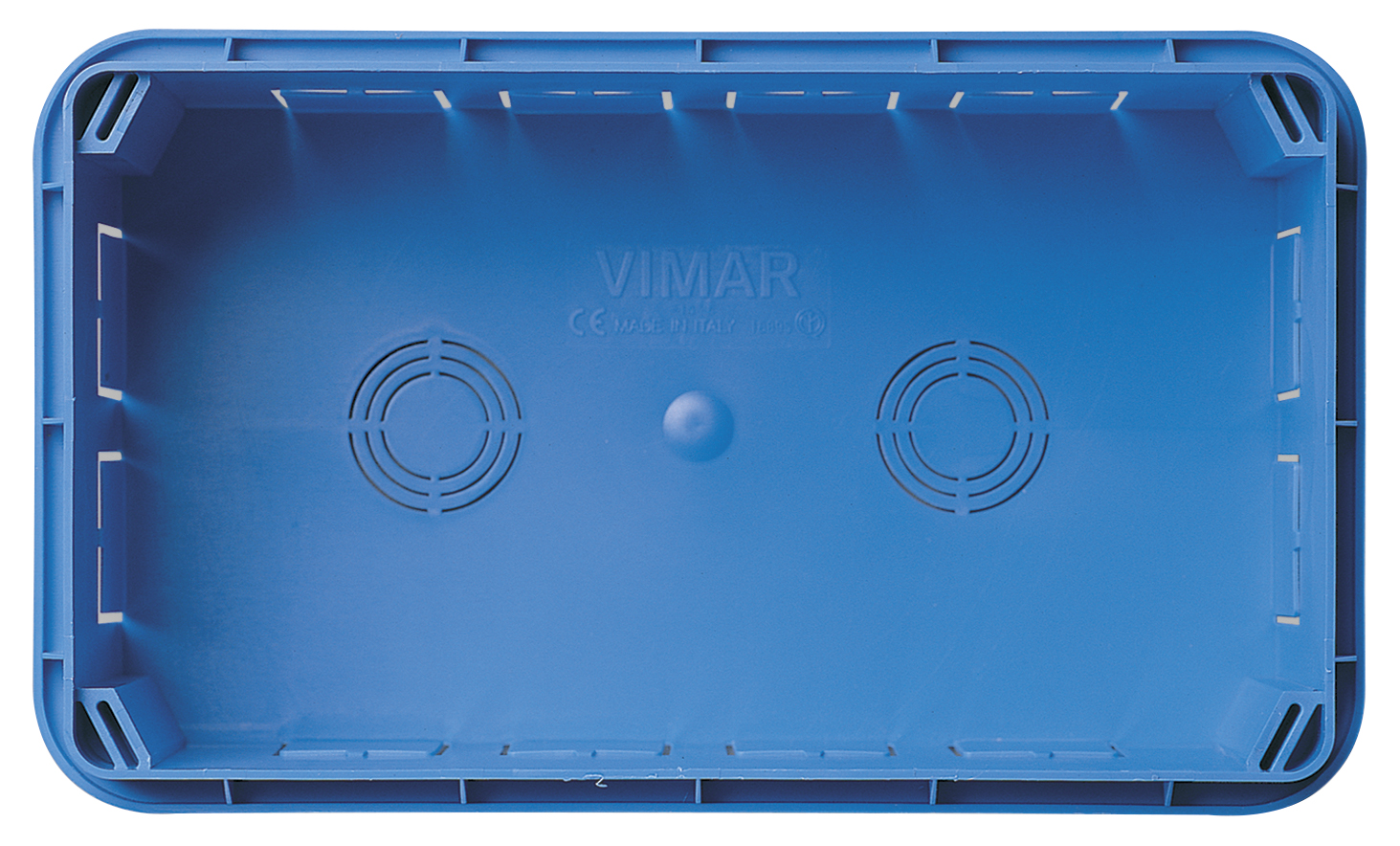

Flush mounting box
Flush mounting box, light blue. Dimensions: 225,5x127,5x70 mm

Product Status
2 - Will be discontinued

Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush-mounted
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Couplable
No
Equipped with
None
Diameter
32 mm
Length
239,00 mm
Width
140,00 mm
Depth
0,00 - 70,00 mm
Inner depth
68,00 mm
For number of electric fittings
1
Mounting switching equipment
Screwing
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Suitable for cable diameter
0 - 32 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
14
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP20
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

00. CE Marking - EU

01. IMQ - Italy

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 25 NR

Barcode

Barcode Qty 1 NR
8007352082984
1 NR
22x12.7x7 [cm]
163.37 [g]
Barcode Qty 25 NR
8007352115514
25 NR
59x38.5x30 [cm]
4,910.67 [g]
