Vimar - 19004.2.M - 1P 10AX 2-way switch 2M Metal

19004.2.M

Arké Metal / Devices / Basic devices

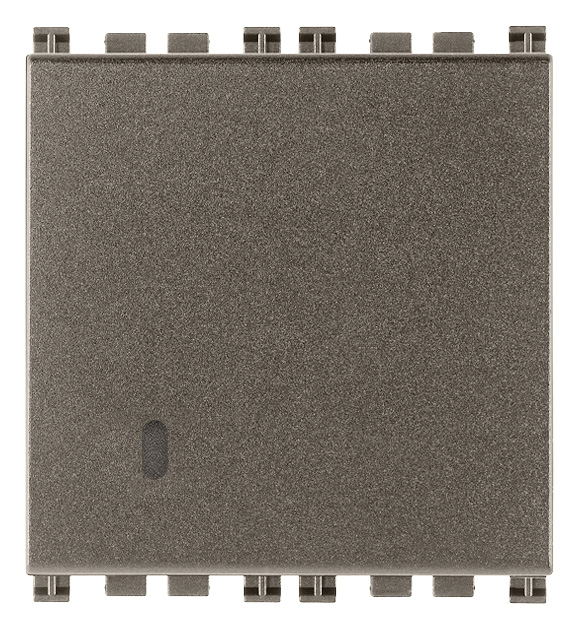

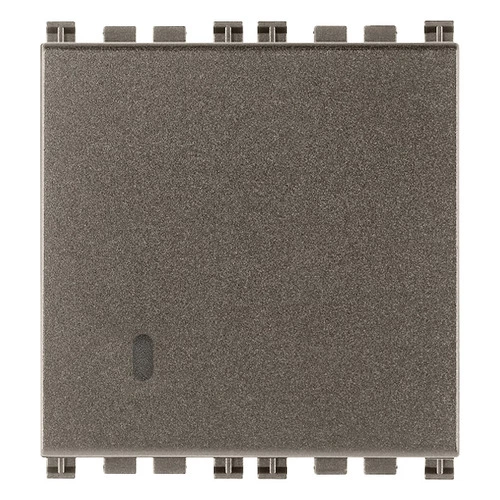

1P 10AX 2-way switch 2M Metal
1P 10 AX 250 V~ 2-way switch, lightable, replaceable button, Metal - 2 modules. Max 100 W for lamps with built-in power unit(IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 19004.2.M

PNG DXF

rear view art. 19004.2.M

PNG DXF

3D view art. 19004.2.M

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
2

Push button switch
Yes

Number of rockers
1

Mounting method
Flush mounted (plaster)

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Lacquered

Surface finishing
Matt

Colour
Aluminium

RAL-number (similar)
9007

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 v

Rated current
10,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

15. CCC - China

28. NSW - Australia

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

8007352685284

1 NR

5.1x4.3x5.3 [cm]

36.9 [g]

8007352685291

20 NR

26.9x11.6x9 [cm]

817.9 [g]
