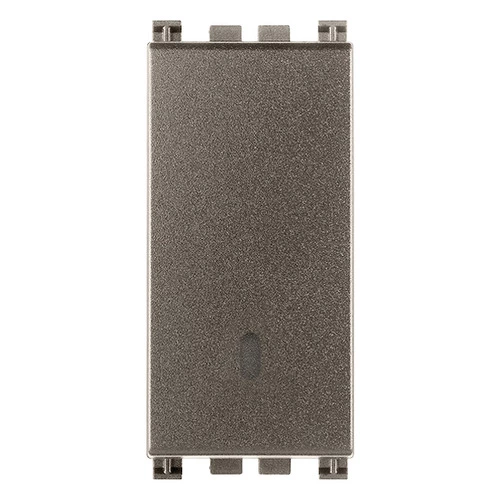

download product photo

19004.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

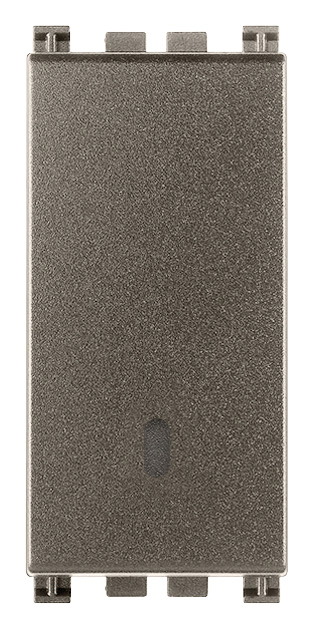

1P 10AX 2-way switch Metal
1P 10 AX 250 V~ 2-way switch, lightable, replaceable button, Metal. Max 100 W for lamps with built-in power unit(IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 19004.M

PNG DXF

rear view art. 19004.M

PNG DXF

3D view art. 19004.M

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Lacquered

Surface finishing
Matt

Colour
Aluminium

RAL-number (similar)
9007

Label space/information surface
Yes

Lighting
Optional

Function lighting
Control and orientation

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
10,00 A

Monitoring contact
No

Connection type
Screwed terminal

Washing machine switch
No

00. CE Marking - EU

01. IMQ - Italy

11. SNI-SUCOFINDO Indonesia

15. CCC - China

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

37. Marking - Morocco

50. Product Environm. Profile

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352684881

1 NR

4.1x2.8x5.3 [cm]

28.2 [g]

8007352684898

50 NR

21.4x11.6x14.2 [cm]

1,497 [g]

8007352684904

500 NR

57.5x22.5x30 [cm]

15,940 [g]

8007352704947

10,500 NR

80x120x103 [cm]

334,740 [g]
