1P NO 10A push button bell symb.2M white - 19008.2.C.B

Pdf

19008.2.C.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

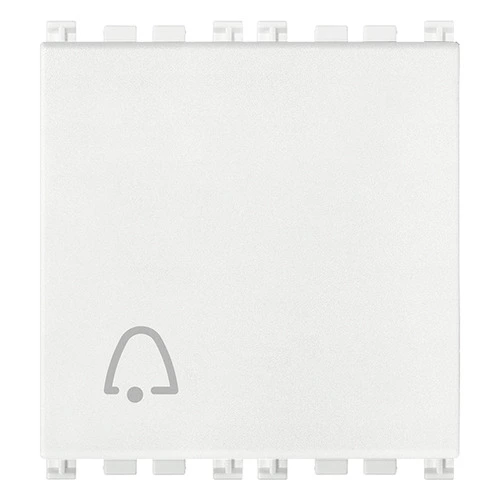

1P NO 10A push button bell symb.2M white
1P NO 10 A 250 V~ push button, lightable bell symbol, replaceable button, white - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
200
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
44,80 mm
Device height
49,00 mm
Device depth
36,90 mm

00. CE Marking - EU

13. SNI-MGI - Indonesia

14. TSE - Turkey

19. NOM - Mexico

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352456648
1 NR
5.1x4.3x5.3 [cm]
34.2 [g]
Barcode Qty 20 NR
8007352456655
20 NR
26.9x11.6x9 [cm]
780.1 [g]
Barcode Qty 240 NR
8007352646797
240 NR
38x28.5x35.5 [cm]
9,720 [g]
