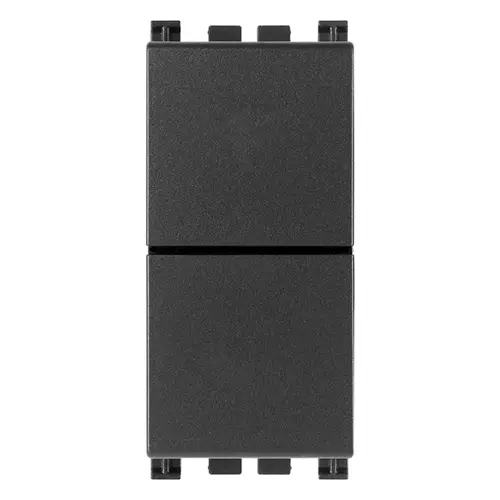

Two independent NO+NO 10A pushes greyCode 19066

Download as PDFPDF

19066: Wiring devices / Traditional wiring devices / ARKÉ / Devices
Two independent NO+NO 10A pushes grey: Two independent push buttons, 1P NO + 1P NO 10 A 250 V~, grey. They allow the simultaneous closing of the two circuits and are thus not suitable for reversing motors (roller blinds, gates, etc.)
Product Status: 3 - Active

Video

Arké lives in your time

Drawings

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Other

Operating method
Push button

Number of rockers
2

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

Monitoring contact
No

Mounting method
Built-in

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7015

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
39,20 mm

00. CE Marking - EU

31. TISI - Thailand

35. RCM - Australia

36. ISI - India

Minimum order quantity: 20 NR

Barcode

8007352414006

4.1x2.8x5.3 [cm]

32.6 [g]

8007352414013

20 NR

21.4x11.6x6 [cm]

710.1 [g]

8007352626287

460 NR

57.5x22.5x30 [cm]

16,852.3 [g]
