Quid -Rolling shutters 2-way switch Meta - 19196.M

Pdf
19196.M

Arké Metal / Devices / Relay switches

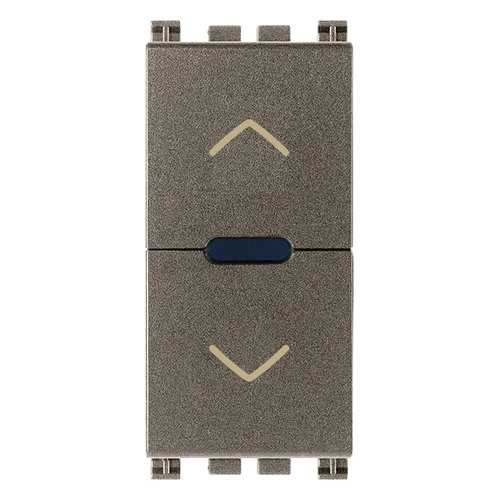

Quid -Rolling shutters 2-way switch Meta
Quid electronic switch for centralised operation of roller shutter with slat orientation with relay outputs for cosφ 0.6 motor 2 A 220-240 V~ 50/60 Hz, position saving, Metal

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Group push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
1
Number of poles
2
Rated current
5,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Height of device
49,00 mm
Depth of device
50,70 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352623118
1 NR
5.1x4.3x5.3 [cm]
45.4 [g]
Barcode Qty 10 NR
8007352623125
10 NR
26.9x11.6x4.9 [cm]
475 [g]
Barcode Qty 200 NR
8007352623750
200 NR
47.5x27x29 [cm]
9,620 [g]
