Arké / Devices / Protected socket outlets

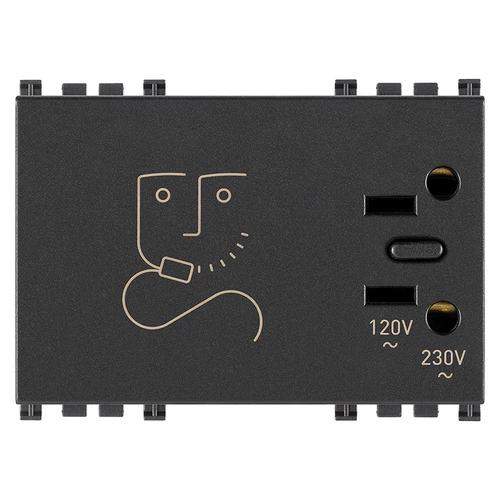

Shaver supply unit 230V grey
Shaver supply unit with 20 VA isolating transformer, supply voltage 230 V~ 50-60 Hz, 120 V~ output voltage for 2P 15 A 125 V~ American standard plugs with non-polarized flat blades, and 230 V~ output voltage for 2P 2,5 A Europlugs, grey - 3 modules

Product Status
3 - Active

Video

Arké lives in your time

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Razor socket outlet

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
3

Mounting method
Flush-mounted

With hinged lid
No

Voltage reversible
No

Nominal voltage low value
230 V

Nominal voltage high value
230 V

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7015

Transparent
No

Device width
67,30 mm

Device height
49,00 mm

Device depth
51,50 mm

With built-in installation box
No

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

8007352414518

1 NR

11.7x10.8x7.1 [cm]

476.6 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
