Vimar - 19603 - Frame 2M without screws 71mm

19603
Wiring devices / Traditional wiring devices / ARKÉ / Mounting frames

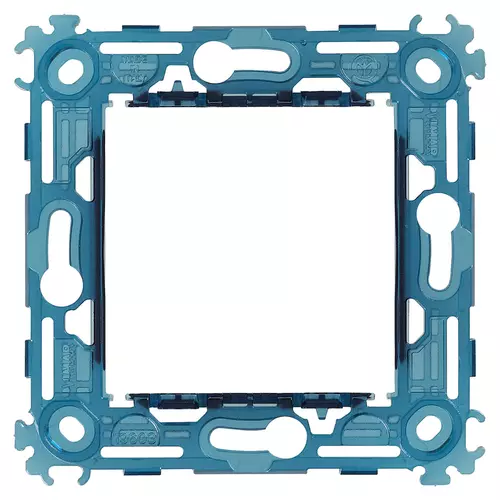

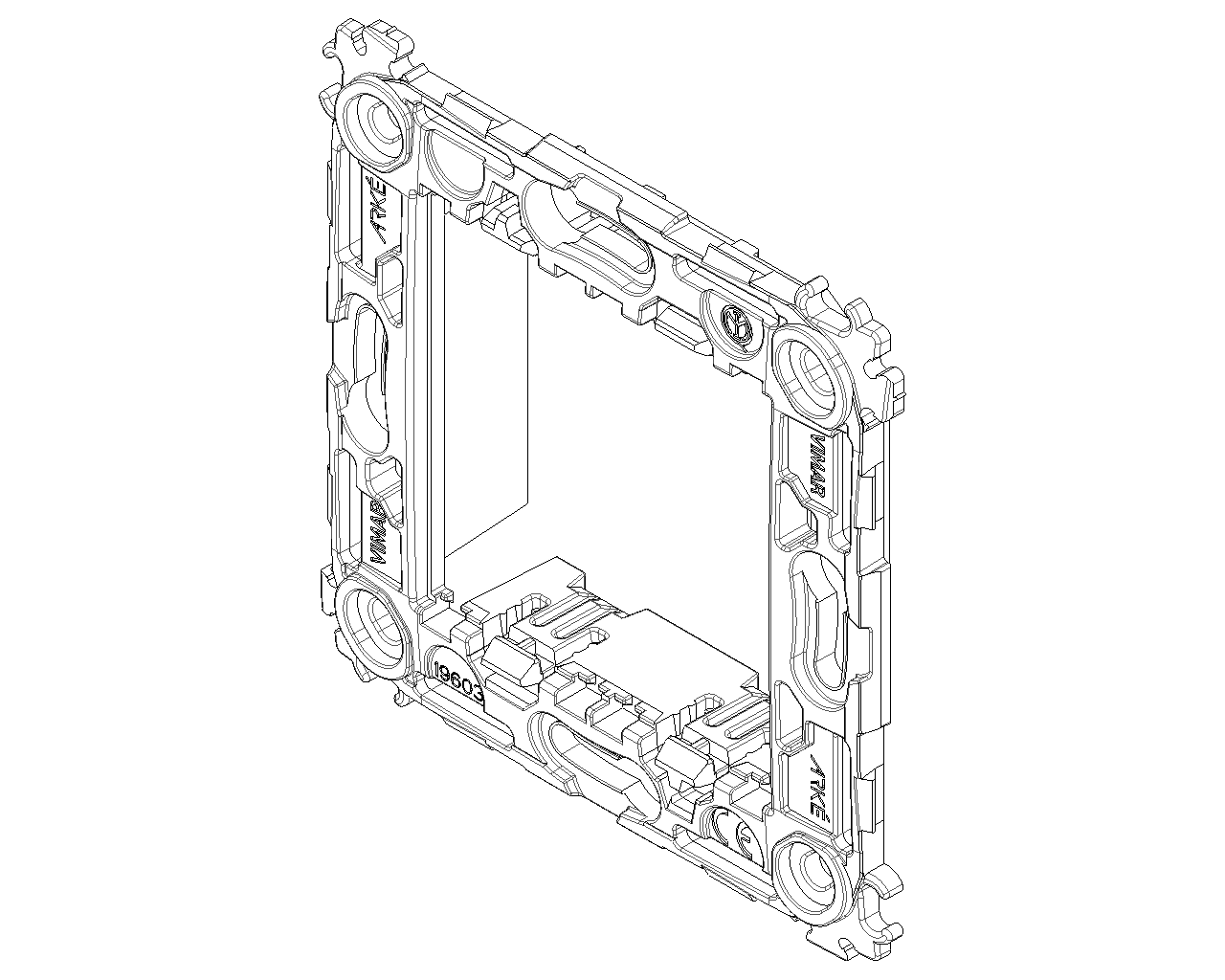

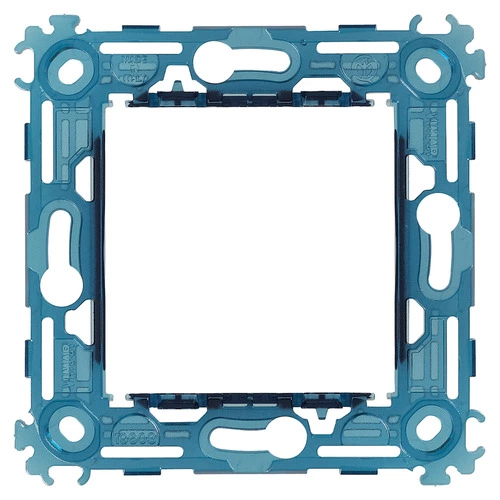

Frame 2M without screws 71mm

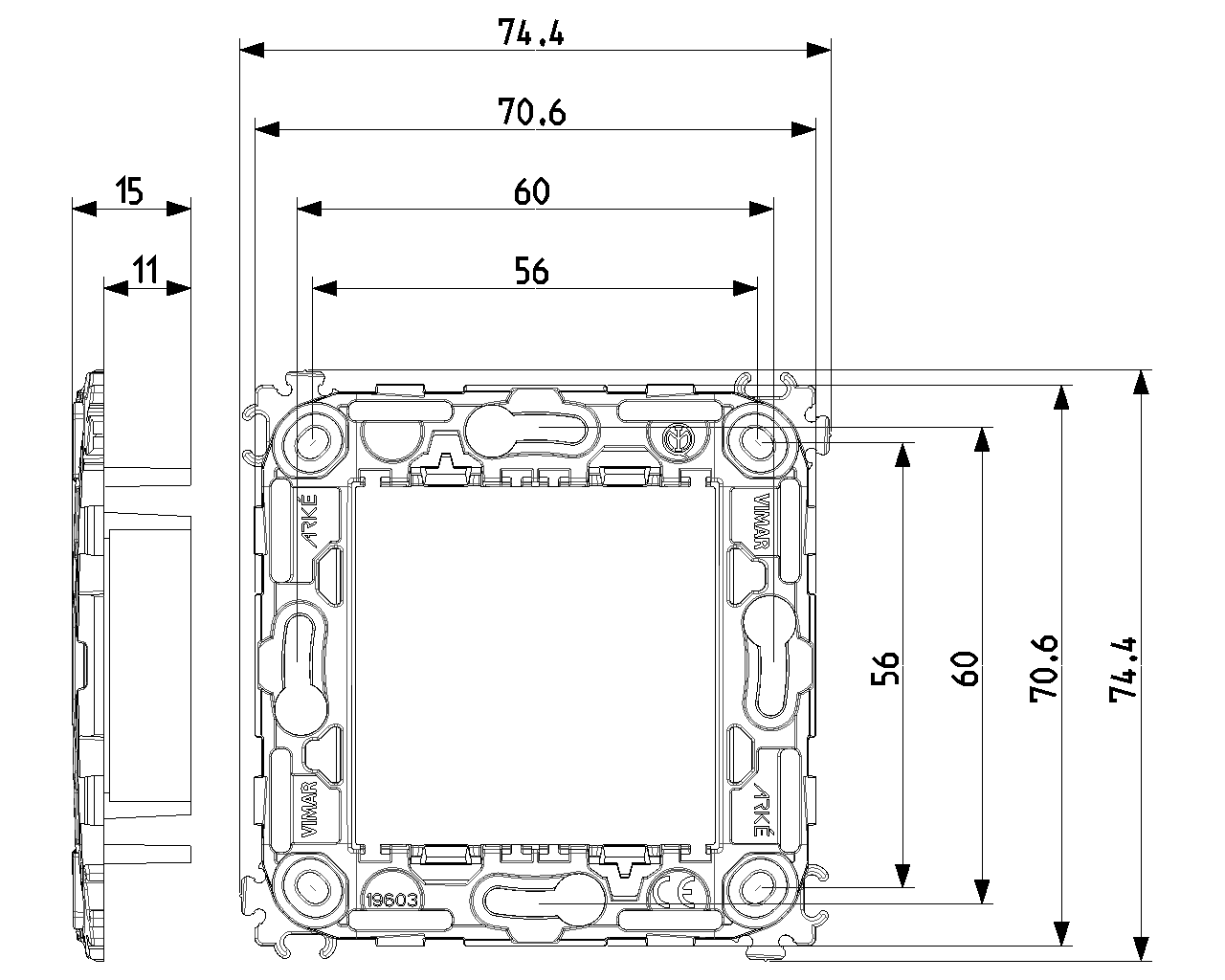

2-module mounting frame, without screws, for 60 mm fixing centres or 56x56 mm mounting box, modular, 71 mm distance between centres, for horizontal or vertical installation

  • The transparency helps the installation and the wiring of devices
  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • The hooking teeth encourage fixing in series for the installation of multiple modules
  • Thanks to the central slots, the support can be fixed onto the wall level

Product Status
3 - Active

You may also be interested in

14602.C
14602.C - Frame protection 2M Plana/Arké
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

29. QCERT - Colombia

43. UKCA mark - Great Britain

50. Product Environm. Profile

96. Electrotechnical expert

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352433489
1 NR
7.4x7.4x2.5 [cm]
10.6 [g]
Barcode Qty 50 NR
8007352433496
50 NR
28.6x24.8x9.6 [cm]
655.6 [g]
Barcode Qty 300 NR
8007352626003
300 NR
62x26x30 [cm]
4,383 [g]
