Vimar - 19621 - Frame 21M +screws
19621

Arké / Mounting frames / For rectangular boxes

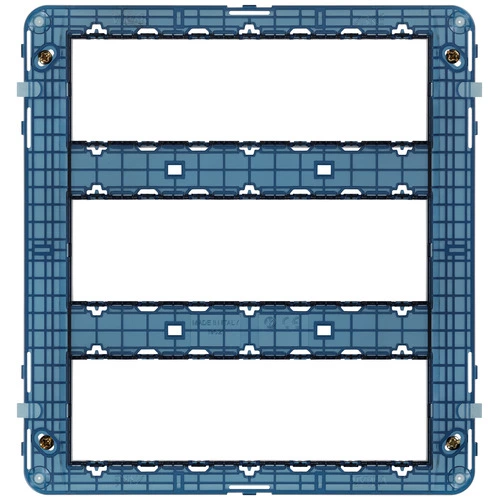

Frame 21M +screws
21 (7+7+7)-module mounting frame, with screws, for V71321 flush or 09921 surface mounting boxes

Product Status
3 - Active

You may also be interested in

07937
07937 - Screw for frame fixing - 35mm
07939
07939 - Screw for frame fixing - 50 mm
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush mounted (plaster)
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
3
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for floor box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

29. QCERT - Colombia

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352433557
1 NR
20.6x20.2x2.5 [cm]
96.6 [g]
Barcode Qty 10 NR
8007352433564
10 NR
28.4x24.4x16.4 [cm]
1,136.6 [g]
